SELECT A DIAGRAM

02 - Color Variation

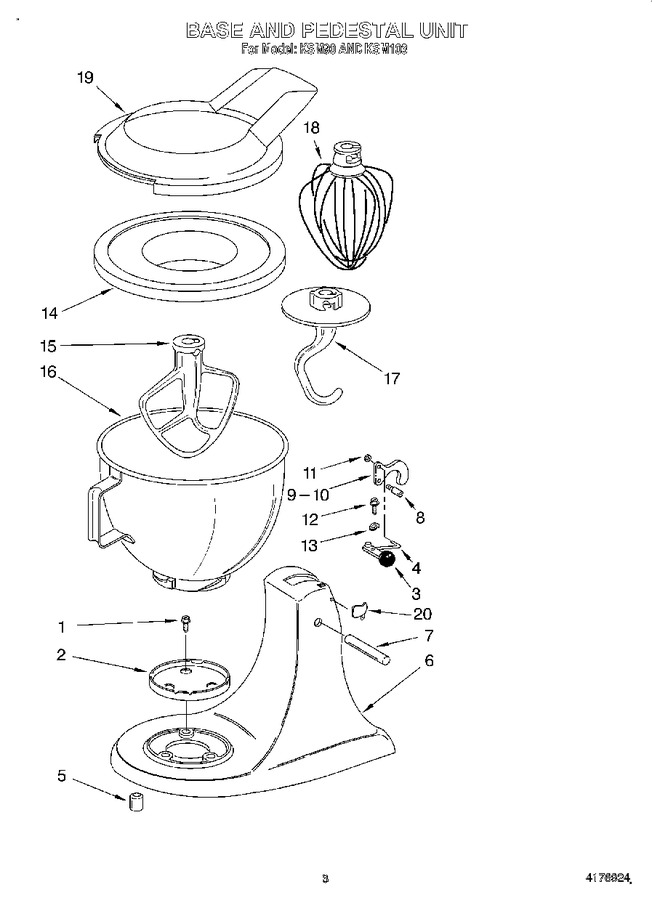

03 - Base And Pedestal, Literature


04 - Case, Gearing And Planetary


05 - Motor And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11544572		Screw   (Replaces: 3400020)				$ 8.41
2	WPW10191926		Screw Cap Kit   (Replaces: 4163032)			Immediately	$ 19.03
3	WP9709280		Lever, Latch (black)   (Replaces: 4176024)			Immediately	$ 4.62
3	242928-2		Lever, Latch (white (storm Gray))   (Replaces: 4176212)				$ 28.96
4	W11232016		Link, Latch   (Replaces: 4159743)				$ 7.83
5	4161530		Foot, Base		Appelez-nous	-
6	WP240151-1		Pedestal-white   (Replaces: 4162008)				$ 92.57
6	9706467		Pedestal-pink		Appelez-nous	-
6	4176335		Pedestal-chrome		Appelez-nous	-
6	9704000		Pedestal-blk Chrome		Appelez-nous	-
6	9705525		Pedestal-biscuit		Appelez-nous	-
6	9705237		Pedestal-caviar		Appelez-nous	-
6	9704747		Pedestal-satin Copper		Appelez-nous	-
6	WP3184273		Pedestal-white (international)   (Replaces: 3184273)				$ 111.28
6	240151-19		Pedestal-majestic Yellow   (Replaces: 4176328)		Appelez-nous	-
6	W11131262		Pedestal-empire Red   (Replaces: 4176327)				$ 97.71
6	W11205080		Pedestal-onyx Black (international)   (Replaces: 3184275)		Appelez-nous	-
6	4176229		Pedestal-royal Crimson		Appelez-nous	-
6	4176201		Pedestal-royal Blue		Appelez-nous	-
6	WP240151-15		Pedestal-almond Creme   (Replaces: 4176194)				$ 96.42
6	4176128		Pedestal-empire Green		Appelez-nous	-
6	240151-13		Pedestal-black Gloss   (Replaces: 4176167)		Appelez-nous	-
6	WP240151-21		Pedestal-imperial Gray (crinkle)   (Replaces: 4176329)				$ 92.57
6	4176122		Pedestal-imperial Gray		Appelez-nous	-
6	9706264		Pedestal-nickel		Appelez-nous	-
6	4176012		Pedestal-cobalt Blue		Appelez-nous	-
7	WP16910		Pin, Hinge   (Replaces: 4159649)			Immediately	$ 4.87
8	W10802060		Screw, Latch Bearing   (Replaces: 4160594)				$ 5.21
9	WP24452		Latch, Link & Lever (incls. Illus. 3, 4, 10 & 11)   (Replaces: 4159744)			Immediately	$ 8.06
10	W11246352		Latch   (Replaces: 4162206)				$ 8.57
12	4160965		Screw, Pivot		Appelez-nous	-
13	4161697		Washer, Spring		Appelez-nous	-
14	4176018		Cover, Bowl		Appelez-nous	-
15	WPW10672617		Beater, Flat   (Replaces: 4162163)			Immediately	$ 24.92
16	W10802058		Bowl And Base (4 1/2 Qt.)   (Replaces: 4163336)				$ 103.12
17	WPW10674618		Dough Hook   (Replaces: 3183588)			Immediately	$ 31.90
18	WP9704329		Wire Whip   (Replaces: 9704329)			Immediately	$ 29.90
19	W11312468		Pouring Shield, One-piece (international)   (Replaces: 4176452)				$ 43.26
20	WP3184264		Head Lock (international) (white)   (Replaces: 3184262)				$ 8.20
20	WP3184264		Head Lock (international) (black)   (Replaces: 3184264)				$ 8.20
	LIT9706634		Literature Parts (use And Care Guide)		Appelez-nous	-
	LIT9705170		Literature, Guide, Use & Care (international)		Appelez-nous	-
	LIT4176924		Repair Parts List		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
