SELECT A DIAGRAM

02 - Color Variation


03 - Base And Pedestal, Literature

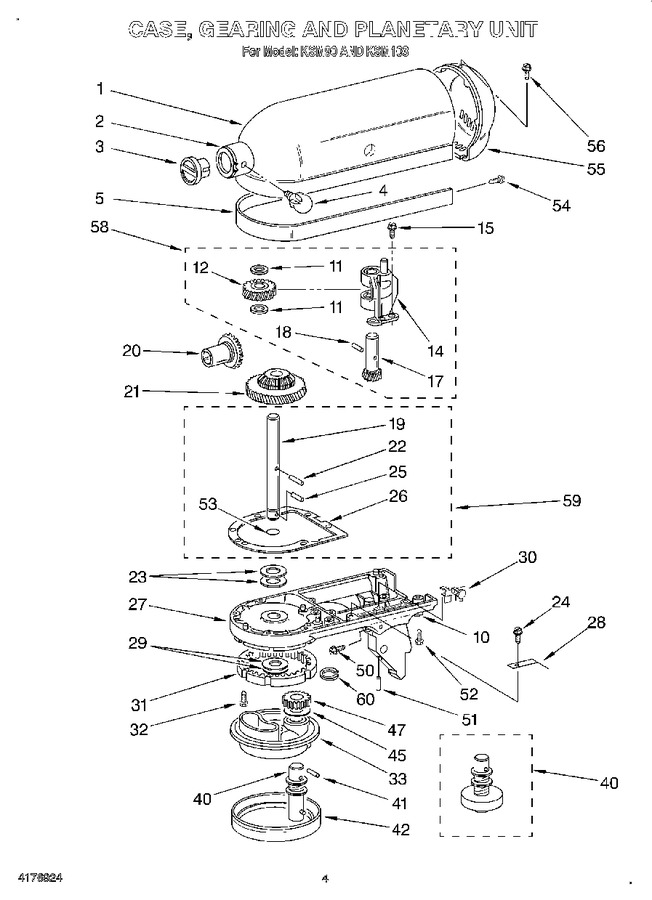

04 - Case, Gearing And Planetary


05 - Motor And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11672793		Gearcase Motor Housing-white   (Replaces: 4162086)				$ 113.22
1	4176227		Gearcase Motor Housing-royal Crimson		Appelez-nous	-
1	9704752		Gearcase Motor Housing-satin Copper		Appelez-nous	-
1	WP240291-21		Gearcase Motor Housing-empire Red   (Replaces: 4176315)				$ 101.29
1	240291-20		Gearcase Motor Housing-majestic Yellow   (Replaces: 4176316)		Appelez-nous	-
1	9706473		Gearcase Motor Housing-pink		Appelez-nous	-
1	4176337		Gearcase Motor Housing-chrome		Appelez-nous	-
1	9704004		Gearcase Motor Housing-black Chrome		Appelez-nous	-
1	9705531		Gearcase Motor Housing-biscuit		Appelez-nous	-
1	9705243		Motor Housing-caviar		Appelez-nous	-
1	9706461		Gearcase Motor Housing-nickel (international)		Appelez-nous	-
1	WP240291-7		Gearcase Motor Housing-cobalt Blue   (Replaces: 4169509)				$ 98.13
1	9706270		Gearcase Motor Housing-nickel		Appelez-nous	-
1	4176086		Gearcase Motor Housing-imperial Gray		Appelez-nous	-
1	WP240291-22		Gearcase Motor Housing-imperial Gray (crinkle)   (Replaces: 4176317)				$ 99.59
1	WP240291-13		Gearcase Motor Housing-black Gloss   (Replaces: 4173581)				$ 101.67
1	4176132		Gearcase Motor Housing-empire Green		Appelez-nous	-
1	WP240291-16		Gearcase Motor Housing-almond Creme   (Replaces: 4176185)				$ 99.42
1	4176204		Gearcase Motor Housing-sea Green		Appelez-nous	-
2	4159709		Ring, Attachment Hub		Appelez-nous	-
3	W11831059		Cap, Attachment Hub (chrome)   (Replaces: 4163469)			Immediately	$ 15.12
3	W11047429		Cap, Attachemnt Hub (white)   (Replaces: 4176209)				$ 33.03
4	WP9709196		Thumb Screw (white (storm Gray))   (Replaces: 4176211)				$ 9.41
4	WP9709194		Thumb Screw (black)   (Replaces: 4162142)			Immediately	$ 20.14
5	9704641		Trim Band-international		Appelez-nous	-
5	9702645		Band-trim		Appelez-nous	-
10	WP8533914		Lock Washer, No.10 Light   (Replaces: 4159479)			Immediately	$ 4.72
11	WPW10323373		Washer, Fiber (black, Gray)   (Replaces: 3180161)			Immediately	$ 4.72
12	WPW10112253		Worm Gear (23t)   (Replaces: 4162897)			Immediately	$ 13.47
14	W11082541		Worm Gear Bracket And Bearing   (Replaces: 4162099)				$ 14.78
15	W11097298		Screw And L.w. Assy. No.10-24 X 7/16`` Phil. Fil. Hd. (3)   (Replaces: 3400022)		Appelez-nous	-
17	WP240210-2		Shaft & Pinion (10t)   (Replaces: 4162037)			Immediately	$ 11.88
18	WP9705444		Pin, Grooved   (Replaces: 9705444)			Immediately	$ 4.84
19	WP240026		Shaft, Vertical Center   (Replaces: 4161956)			Immediately	$ 9.14
20	W11192794		Gear, Attachment Hub Bevel (23t)   (Replaces: 9703907)			Immediately	$ 40.69
21	W11192794		Bevel Pinion (19t) & Center Gear (62t)   (Replaces: 9703905)			Immediately	$ 40.69
22	WP9707223		Pin (vertical Center Shaft)   (Replaces: 4161950)			Immediately	$ 5.08
23	WPW10323378		Washer, Fiber (black, Gray)   (Replaces: 3180163)			Immediately	$ 10.83
24	4176022		Screw (international)		Appelez-nous	-
25	W11762673		Pin, Grooved   (Replaces: 9705443)			Immediately	$ 4.25
26	W11805888		Gasket, Transmission Case   (Replaces: 4162324)			Immediately	$ 46.84
27	4176023		Lower Gearcase-cobalt Blue		Appelez-nous	-
27	W10861717		Lower Gearcase-white   (Replaces: 4162122)				$ 113.05
27	9704748		Lower Gearcase-satin Copper		Appelez-nous	-
27	9706273		Lower Gearcase-nickel		Appelez-nous	-
27	4176121		Lower Gearcase-imperial Gray		Appelez-nous	-
27	4176326		Lower Gearcase-imperial Gray (crinkle)		Appelez-nous	-
27	WP240350-56		Lower Gearcase-black Gloss   (Replaces: 4176166)				$ 108.70
27	4173573		Lower Gearcase-empire Green		Appelez-nous	-
27	240350-62		Lower Gearcase-almond Creme   (Replaces: 4176193)				$ 69.22
27	4176205		Lower Gearcase-royal Blue		Appelez-nous	-
27	4176221		Lower Gearcase-royal Crimson		Appelez-nous	-
27	WP240350-84		Lower Gearcase-empire Red   (Replaces: 4176324)				$ 65.91
27	240350-82		Lower Gearcase-majestic Yellow   (Replaces: 4176325)		Appelez-nous	-
27	9706472		Lower Gearcase-pink		Appelez-nous	-
27	4176336		Lower Gearcase-chrome		Appelez-nous	-
27	4176450		Lower Gearcase-black Chrome		Appelez-nous	-
27	9705526		Lower Gearcase-biscuit		Appelez-nous	-
27	9706911		Lower Gearcase-caviar   (Replaces: 9705238)		Appelez-nous	-
28	9701864		Spring Flat (international)		Appelez-nous	-
29	WPW10323378		Washer, Fiber (black, Gray)   (Replaces: 3180163)			Immediately	$ 10.83
30	WP3184200		Headlock Assembly (international)   (Replaces: 9701866)				$ 13.44
31	W11340106		Gear, Internal   (Replaces: 9703904)				$ 18.56
32	4160595		Screw, Special (5)		Appelez-nous	-
33	9705244		Planetary-caviar				$ 44.59
33	9706475		Planetary-pink		Appelez-nous	-
33	4176338		Planetary-chrome		Appelez-nous	-
33	W10128414		Planetary-black Chrome   (Replaces: 9704006)				$ 45.31
33	9705533		Planetary-biscuit		Appelez-nous	-
33	WP240286-1		Planetary-white   (Replaces: 4162075)			Immediately	$ 25.99
33	9704755		Planetary-satin Copper				$ 73.89
33	W10342514		Planetary-cobalt Blue   (Replaces: 4169508)				$ 45.31
33	9706271		Planetary-nickel				$ 76.98
33	4176089		Planetary-imperial Gray		Appelez-nous	-
33	240286-24		Planetary-imperial Gray (crinkle)   (Replaces: 4176323)				$ 49.73
33	W11199173		Planetary-black Gloss   (Replaces: 4173584)				$ 32.71
33	9706670		Planetary-empire Green   (Replaces: 4176133)			Immediately	$ 45.31
33	240286-18		Planetary-almond Creme   (Replaces: 4176187)				$ 44.59
33	4176203		Planetary-royal Blue		Appelez-nous	-
33	4176226		Planetary-royal Crimson		Appelez-nous	-
33	W11084831		Planetary-empire Red   (Replaces: 4176321)				$ 27.92
33	240286-22		Planetary-majestic Yellow   (Replaces: 4176322)		Appelez-nous	-
40	WP243368		Agitator Shaft (includes Cup) (international)   (Replaces: 3184052)			Immediately	$ 17.29
40	WP243368		Agitator Shaft (includes Illus. 60)   (Replaces: 4176067)			Immediately	$ 17.29
41	WP9707223		Pin (agitator Shaft Pinion)   (Replaces: 4161950)			Immediately	$ 5.08
42	WP240285		Ring, Planetary Drip   (Replaces: 4162074)			Immediately	$ 9.06
45	3180160		Washer, Shim (.015`` Thk.) (.031`` Thk.)				$ 18.10
47	W11133645		Pinion, Gear (18t) (agitator Shaft)   (Replaces: 9703903)				$ 4.92
50	W11028216		Screw, Adjusting   (Replaces: 4160413)				$ 5.22
51	WP3400203		Set Screw, 1/4``- 28 X 3/8`` Hdls., Cup Pt.   (Replaces: 4159264)			Immediately	$ 5.04
52	WP3400025		Machine Screw, 10-24 X 1 Fil. Head   (Replaces: 4159204)				$ 4.62
53	WP67500-55		``o`` Ring   (Replaces: 4159817)			Immediately	$ 4.52
54	W10853069		Screw, Self Tapping 6-32 X 1/4`` Phil. Pan Hd. Type F   (Replaces: 4159430)				$ 4.32
55	9704029		End Cover-black Chrome   (Replaces: 4176449)		Appelez-nous	-
55	W11084313		End Cover-empire Red   (Replaces: 4176318)				$ 29.89
55	240253-21		End Cover-majestic Yellow   (Replaces: 4176319)		Appelez-nous	-
55	9706469		End Cover-pink		Appelez-nous	-
55	4176339		End Cover-chrome		Appelez-nous	-
55	4176320		End Cover-imperial Gray (crinkle)		Appelez-nous	-
55	240253-14		End Cover-black Gloss   (Replaces: 4173583)				$ 48.42
55	9705241		End Cover-caviar		Appelez-nous	-
55	4176134		End Cover-empire Green		Appelez-nous	-
55	240253-16		End Cover-almond Creme   (Replaces: 4176190)		Appelez-nous	-
55	4176202		End Cover-royal Blue		Appelez-nous	-
55	4176224		End Cover-royal Crimson		Appelez-nous	-
55	9705527		End Cover-biscuit		Appelez-nous	-
55	WP240253-1		End Cover-white   (Replaces: 4162055)				$ 21.47
55	W10291365		End Cover-satin Copper   (Replaces: 9704757)		Appelez-nous	-
55	240253-8		End Cover-cobalt Blue   (Replaces: 4169506)				$ 46.79
55	W10291364		End Cover-nickel   (Replaces: 9706268)		Appelez-nous	-
55	240253-23		End Cover-imperial Gray   (Replaces: 4176087)				$ 43.04
56	WP241877		Screw, 6-32 X 3/8 Phil. Oval Hd.   (Replaces: 4162914)				$ 4.15
58	WP240309-2		Worm Gear Bracket And Gear (10 T & 23 T) (incls. Illus 11 Thru 14, 17 & 18)   (Replaces: 4162101)			Immediately	$ 39.53
59	4160474		Center Shaft & ``o`` Ring (incls. Illus. 19, 22, 25, 26, & 53)				$ 28.53
60	WP9703438		Ring   (Replaces: 9703438)			Immediately	$ 4.60

    View Diagram in Separate Window       Print Part List
