SELECT A DIAGRAM

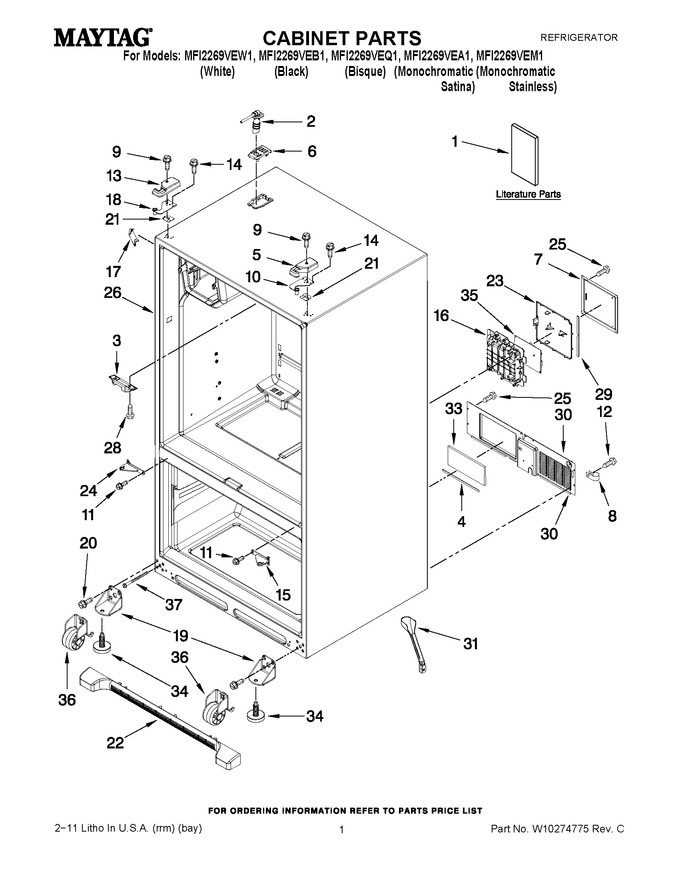

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238848		Tech Sheet		Appelez-nous	-
1	W10209645		Guide, Energy		Appelez-nous	-
1	12828186SP		Use & Care Guide		Appelez-nous	-
2	W11551552		Tube W/waterline, Fill-im   (Replaces: 12961402)			Immediately	$ 19.23
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket, Mc Back				$ 12.41
5	12962302Q		Cover, Top Hinge (right) (bisque)		Appelez-nous	-
5	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 21.47
5	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 20.54
5	WPW10191117		Cover, Top Hinge (right) (apollo Grey)   (Replaces: 12962302AP)				$ 21.95
6	W10191141		Cover, Fill Tube (apollo Grey)   (Replaces: 12981401AP)				$ 14.34
6	12981401B		Cover, Fill Tube (black)				$ 12.62
6	12981401W		Cover, Fill Tube (white)				$ 12.62
7	12961602		Cover, Control Box				$ 110.66
8	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
9	WP8281196		Screw, Hinge Cover   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 29.02
11	W11573362		Screw, Center Hinge   (Replaces: 12992201)				$ 14.02
12	67006425		Screw (3)   (Replaces: 12990511)			Immediately	$ 6.95
13	WPW10337648		Cover, Top Hinge (left) (apollo Grey)   (Replaces: 12962301AP)				$ 22.02
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 12962301B)			Immediately	$ 22.22
13	12962301Q		Cover, Top Hinge (left) (bisque)		Appelez-nous	-
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 12962301W)			Immediately	$ 22.42
14	WP489349		Screw, Top Hinge   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64
15	13000002WD		Hinge, Center (rt) (white)				$ 153.32
15	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
16	WP67006390		Box, Hv Control   (Replaces: 12957601)				$ 204.37
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	WP12587703AP		Cover, Corner (2) (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
17	12587703C		Cover, Corner (2) (bisque)		Appelez-nous	-
17	12587703W		Cover, Corner (2) (white)				$ 21.81
18	W11592375		Hinge, Top Left   (Replaces: 12963204ED)				$ 29.09
19	12906303WD		Foot, Cabinet				$ 84.36
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 7.69
21	12999501		Shim, Top Hinge (left)				$ 94.79
21	12999502		Shim, Top Hinge (right)				$ 95.81
22	WPW10534162		Grille, Toe (black)   (Replaces: W10236196)				$ 141.10
22	W10236197		Grille, Toe (bisque)				$ 44.57
22	WPW10534160		Grille, Toe (apollo Grey)   (Replaces: W10236194)			Immediately	$ 72.60
22	WPW10534161		Grille, Toe (white)   (Replaces: W10236195)				$ 140.09
23	67006428		Lid, Hv Control   (Replaces: 12957701)				$ 59.57
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
24	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
25	W11686675		Screw, Cover   (Replaces: 12990702)				$ 13.59
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
28	W10854958		Screw, Block   (Replaces: 12990302)				$ 7.43
29	12957801		Gasket, Hv Control		Appelez-nous	-
30	W10211849		Cover, Mc Back				$ 187.30
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
33	12820505		Fiber, Acoustic				$ 71.70
34	10354002		Brake, Foot			Immediately	$ 7.38
35	WPW10310240		Board, Hv Control   (Replaces: W10213583)			Immediately	$ 391.86
36	12580304		Roller Assembly				$ 5.84
37	71003131		Bolt, Roller Adjust   (Replaces: 12606103)			Immediately	$ 6.74

    View Diagram in Separate Window       Print Part List
