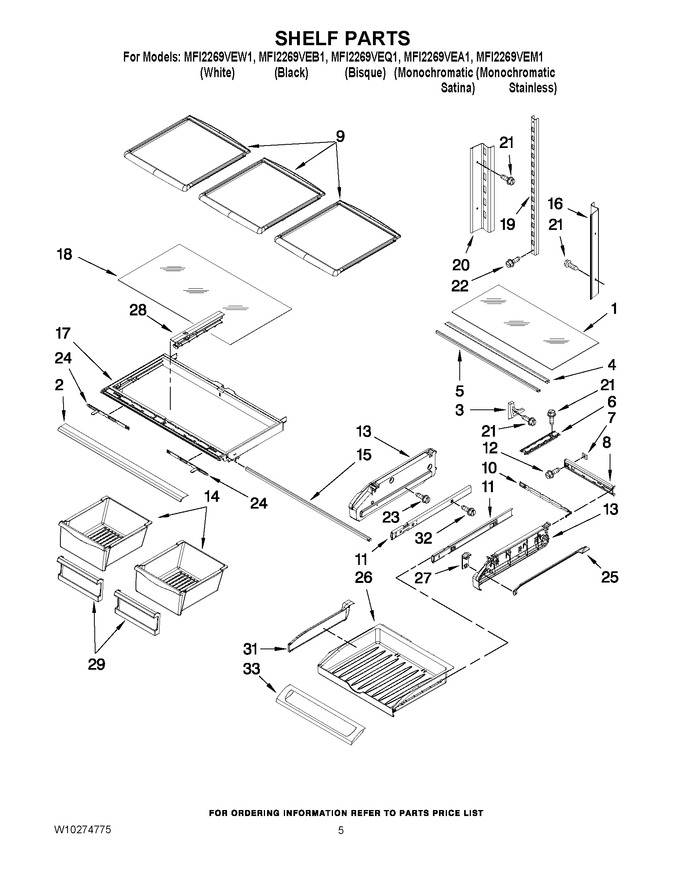

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10165870 | Glass, Pantry (Replaces: 12204820) |
|
$ 218.67 | |||||
| 2 | WPW10231343 | Trim, Crisper (Replaces: W10231343) |
|
Immediately | $ 99.65 | ||||
| 3 | WP67001722 | Support Crisper (right) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 3 | WP67001721 | Support Crisper (left) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 4 | W10166785 | Support, Pantry(2) (Replaces: 12655903) |
|
$ 94.49 | |||||
| 5 | WP12227302WD | Brace, Pantry (2) (Replaces: 12227301WD) |
|
$ 106.29 | |||||
| 6 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 7 | 12656902 | Gasket, Pantry |
|
- | |||||
| 8 | W10165876 | Housing, Control (Replaces: 13048301) |
|
$ 77.02 | |||||
| 9 | 13029504 | Shelf, Glide (3) |
|
$ 120.66 | |||||
| 10 | W10165882 | Slide, Temperature (Replaces: 13048401) |
|
$ 15.48 | |||||
| 11 | WPW10235370 | Glide, Drawer(2) (Replaces: 13058101V) |
|
Immediately | $ 199.80 | ||||
| 12 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 13 | W11197396 | Endcap, Pantry (left) (Replaces: 13047801) |
|
Immediately | $ 51.27 | ||||
| 13 | W11197396 | Endcap, Pantry (right) (Replaces: 13047701) |
|
Immediately | $ 51.27 | ||||
| 14 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505SP) |
|
Immediately | $ 149.12 | ||||
| 15 | WP12227303WD | Brace, Crisper (Replaces: 12227303WD) |
|
$ 105.95 | |||||
| 16 | W10251965 | Ladder, Side Rh (Replaces: 13039301) |
|
$ 29.60 | |||||
| 17 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 18 | WP67006878 | Glass, Crisper Cover (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 19 | 12435809 | Ladder, Center |
|
- | |||||
| 20 | W10165968 | Ladder, Side Lh (Replaces: 13039304) |
|
$ 105.45 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 22 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.13 | |||||
| 23 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.80 | |||||
| 24 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 25 | W10165910 | Bar, Temperature Control (Replaces: 13048201) |
|
$ 14.73 | |||||
| 26 | W11513151 | Drawer, Pantry (Replaces: 13048501SP) |
|
Immediately | $ 132.45 | ||||
| 27 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 29.18 | |||||
| 28 | WPW10671238 | Rail-center Crspr. (Replaces: 12530701) |
|
Immediately | $ 112.82 | ||||
| 29 | WP67005920 | Front-crisper Pan (Replaces: 12802302SP) |
|
Immediately | $ 74.59 | ||||
| 31 | WPW10165967 | Divider, Pantry (Replaces: 13048601SP) |
|
Immediately | $ 48.32 | ||||
| 32 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 33 | W10827914 | Lid, Pantry (Replaces: 12656820) |
|
Immediately | $ 174.01 |
