01 - Cover Sheet

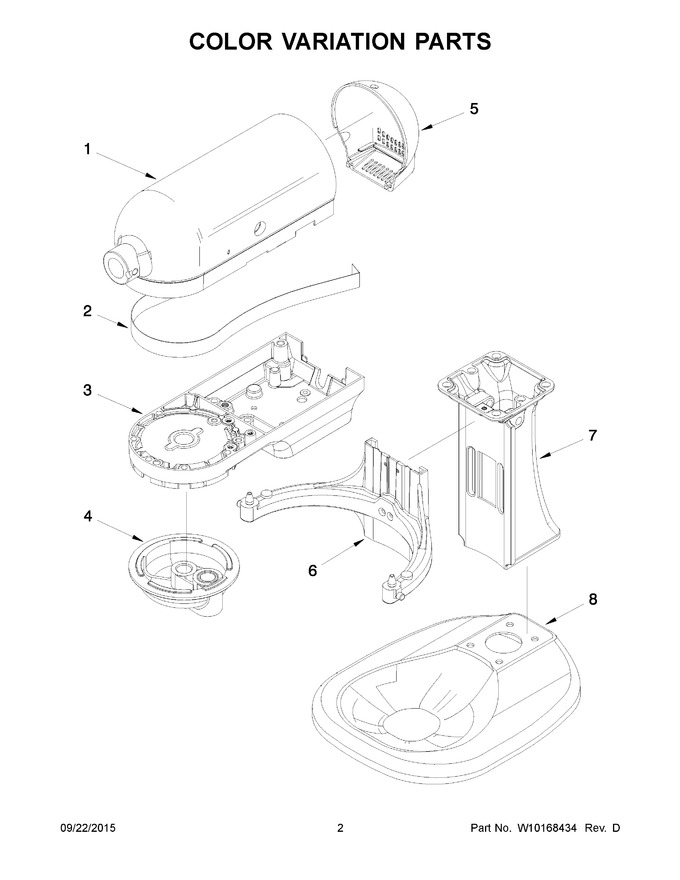

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10121193 | Motor Housing (silver Metallic) |
|
- | |||||
| 2 | W10158179 | Trim Band (black) |
|
- | |||||
| 3 | W10158521 | Lower Gearcase (silver Metallic) |
|
- | |||||
| 4 | 9706670 | Planetary (silver Metallic) (Replaces: W10121190) |
|
Immediately | $ 45.31 | ||||
| 5 | W10121188 | End Cover (silver Metallic) |
|
- | |||||
| 6 | W10158518 | Bowl Support And Pins (silver Metallic) |
|
- | |||||
| 7 | W10158516 | Column (silver Metallic) |
|
- | |||||
| 8 | W10158515 | Base & Foot Assembly (silver Metallic) |
|
- | |||||
| 1A | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1B | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 1C | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 1D | WP240291-16 | Motor Housing (almond Creme) (Replaces: 240291-16) |
|
$ 99.42 | |||||
| 1E | 9709600 | Motor Housing (blue Willow) |
|
- | |||||
| 1F | 9709903 | Motor Housing (buttercup) |
|
- | |||||
| 1G | 9709442 | Motor Housing (gloss Cinnamon) |
|
- | |||||
| 3A | 9704499 | Lower Gearcase (empire Red) |
|
- | |||||
| 3B | 240354-43 | Lower Gearcase (onyx Black) |
|
- | |||||
| 3C | 240354-3 | Lower Gearcase (white) |
|
$ 49.32 | |||||
| 3D | 240354-49 | Lower Gearcase (almond Creme) |
|
- | |||||
| 3E | W10275886 | Lower Gearcase (blue Willow) |
|
- | |||||
| 3F | W10275888 | Lower Gearcase (buttercup) |
|
- | |||||
| 3G | W10275890 | Lower Gearcase (gloss Cinnamon) |
|
- | |||||
| 4A | W11084831 | Planetary (empire Red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 4B | W11199173 | Planetary (onyx Black) (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 4C | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 4D | 240286-18 | Planetary (almond Creme) |
|
$ 44.59 | |||||
| 4E | 9709597 | Planetary (blue Willow) |
|
- | |||||
| 4F | 9709900 | Planetary (buttercup) |
|
- | |||||
| 4G | 9709439 | Planetary (gloss Cinnamon) |
|
- | |||||
| 5A | W11084313 | End Cover (empire Red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 5B | 240253-14 | End Cover (onyx Black) |
|
$ 48.42 | |||||
| 5C | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 5D | 240253-16 | End Cover (almond Creme) |
|
- | |||||
| 5E | 9709595 | End Cover (blue Willow) |
|
- | |||||
| 5F | 9709898 | End Cover (buttercup) |
|
- | |||||
| 5G | 9709437 | End Cover (gloss Cinnamon) |
|
- | |||||
| 6A | 3179318 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 6B | 3179311 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 6C | 3179300 | Bowl Support And Pins (white) |
|
$ 66.43 | |||||
| 6D | 3179313 | Bowl Support And Pins (almond Creme) |
|
- | |||||
| 6E | W10275873 | Bowl Support And Pins (blue Willow) |
|
- | |||||
| 6F | W10275874 | Bowl Support And Pins (buttercup) |
|
- | |||||
| 6G | W10275875 | Bowl Support And Pins (gloss Cinnamon) |
|
- | |||||
| 7A | 9702393 | Column (empire Red) |
|
- | |||||
| 7B | 240148-15 | Column (onyx Black) |
|
- | |||||
| 7C | 240148-4 | Column (white) |
|
- | |||||
| 7D | 240148-17 | Column (almond Creme) |
|
- | |||||
| 7E | W10275880 | Column (blue Willow) |
|
- | |||||
| 7F | W10275881 | Column (buttercup) |
|
- | |||||
| 7G | W10275883 | Column (gloss Cinnamon) |
|
- | |||||
| 8A | 3179299 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 8B | 3179292 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 8C | 3179280 | Base & Foot Assembly (white) |
|
- | |||||
| 8D | 3179294 | Base & Foot Assembly (almond Creme) |
|
- | |||||
| 8E | W10275896 | Base & Foot Assembly (blue Willow) |
|
- | |||||
| 8F | W10275897 | Base & Foot Assembly (buttercup) |
|
- | |||||
| 8G | W10275899 | Base & Foot Assembly (gloss Cinnamon) |
|
- |
