SELECT A DIAGRAM

01 - Cover Sheet


02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts


04 - Motor And Control Unit Parts

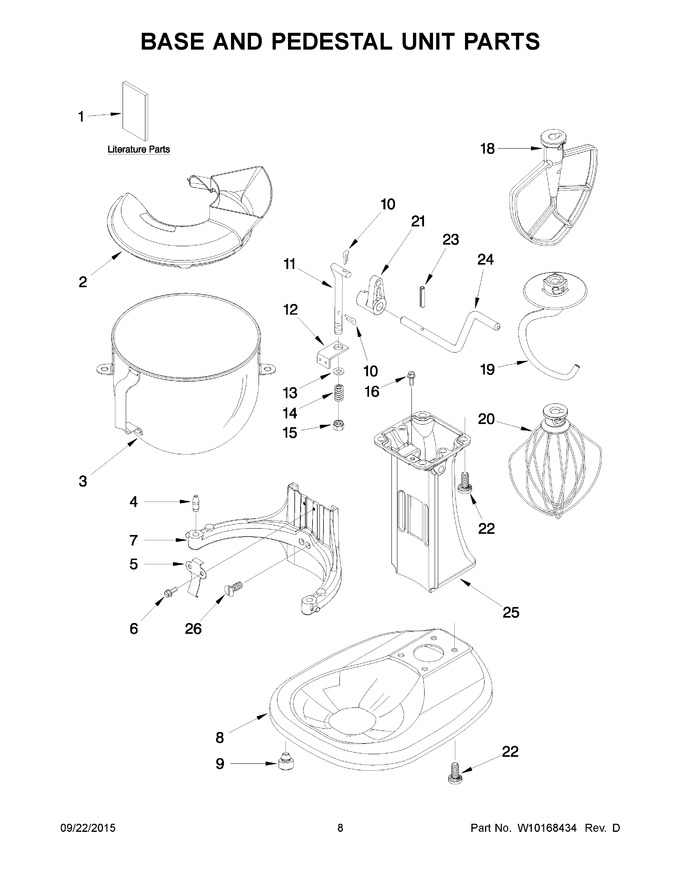

05 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9706634		Use & Care Guide		Appelez-nous	-
2	W11312468		Pouring Shield (kn1ps0)   (Replaces: 9709923)				$ 43.26
3	W10802050		Bowl (5 Qt)   (Replaces: 4162161)				$ 122.88
4	WP240185		Pin, Retaining Bowl   (Replaces: 240185)				$ 4.50
5	WP3182857		Latch, Bowl Spring   (Replaces: 3182857)			Immediately	$ 5.29
6	WP4159193		Screw   (Replaces: 3400024)				$ 5.07
7	N/P		Bowl Support & Pins (refer To Color Variation Parts Page)		Appelez-nous	-
8	N/P		Base & Foot Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
9	WP9708649		Foot   (Replaces: 9708649)			Immediately	$ 4.79
10	WP9704608		Pin, Cotter   (Replaces: 9704608)				$ 4.37
11	W10598834		Rod, Bowl Lift   (Replaces: 4159620)				$ 29.90
12	240169		Bracket, Bowl Lift			Immediately	$ 69.83
13	W11708396		Washer   (Replaces: W10260809)				$ 4.60
14	4159622		Spring, Lift Rod   (Replaces: 9237)			Immediately	$ 4.70
15	8533907		Nut				$ 24.83
16	3182904		Screw		Appelez-nous	-
18	240235-4		Beater, Flat		Appelez-nous	-
19	WPW10674621		Hook, Dough   (Replaces: 3183233)				$ 51.22
20	WPW10731415		Whip, Wire   (Replaces: 9704309)			Immediately	$ 37.93
21	WP241764		Arm, Bowl Lift   (Replaces: 241764)			Immediately	$ 8.57
22	WP4162403		Screw, Special   (Replaces: 240912)				$ 5.38
23	WP9703442		Pin, Roll   (Replaces: 9703442)				$ 4.28
24	W11812045		Handle, Bowl Lift   (Replaces: 9079)				$ 10.85
25	N/P		Column Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
26	W10861883		Screw   (Replaces: 3400018)			Immediately	$ 4.94

    View Diagram in Separate Window       Print Part List
