SELECT A DIAGRAM

01 - Color Variation Parts

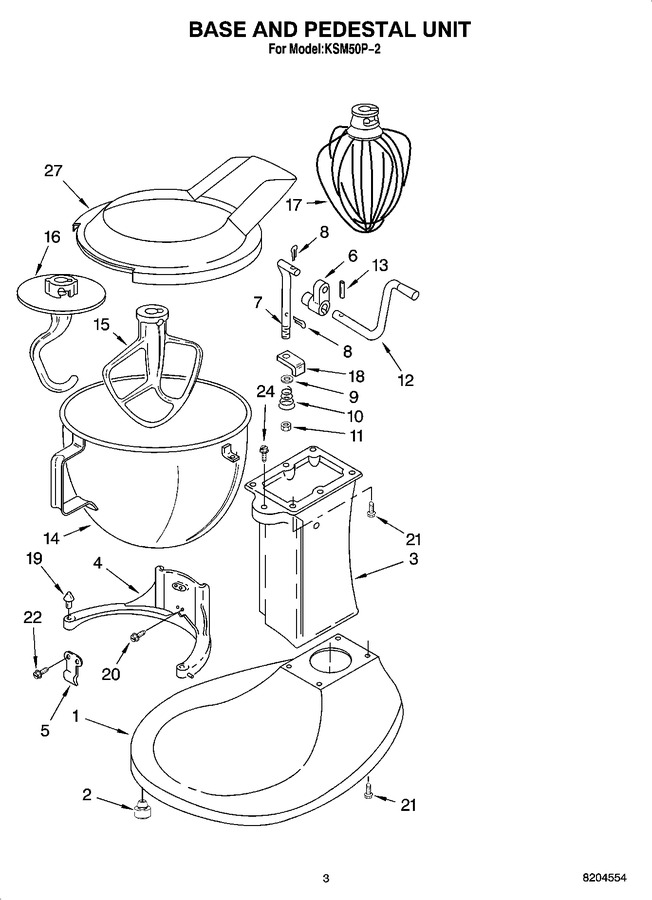

02 - Base And Pedestal Unit


03 - Case, Gearing And Planetary Unit


04 - Motor And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8211628		Foot, Rubber (4)   (Replaces: 9703414)				$ 7.71
5	WP3182857		Latch, Bowl Spring   (Replaces: 3182857)			Immediately	$ 5.29
6	WP241764		Arm, Bowl Lift   (Replaces: 4162874)			Immediately	$ 8.57
7	W10598834		Rod, Bowl Lift   (Replaces: 4159620)				$ 29.90
8	WP9704608		Cotter Pin 5/64 X 1/2 (2)   (Replaces: 9704608)				$ 4.37
9	W11708396		Washer   (Replaces: 4159514)				$ 4.60
10	4159622		Spring   (Replaces: 9237)			Immediately	$ 4.70
11	8533907		Nut, 1/4-28   (Replaces: 4159092)				$ 24.83
12	W11812045		Handle, Bowl Lift   (Replaces: 4159615)				$ 10.85
13	WP9703442		Roll Pin   (Replaces: 9703442)				$ 4.28
14	WPW10714130		Bowl (5 Qt)   (Replaces: 4176144)				$ 110.24
15	W11356332		Beater, Flat   (Replaces: 4176182)				$ 20.94
16	WPW10674621		Dough Hook   (Replaces: 3183233)				$ 51.22
17	WPW10731415		Wire Whip   (Replaces: 9704309)			Immediately	$ 37.93
18	240169		Bracket, Bowl Lift			Immediately	$ 69.83
19	WP240185		Pin, Bowl Locating   (Replaces: 4162028)				$ 4.50
20	W10861883		Screw, 10-24 X 1/2   (Replaces: 3400018)			Immediately	$ 4.94
21	WP4162403		Screw, Special (5/16-18 X 3/4) Pan Head (4)   (Replaces: 4162403)				$ 5.38
22	WP4159193		Screw, 10-24 X 1/4 Machine Round Head   (Replaces: 3400024)				$ 5.07
24	3182904		Screw, Dbl. Ended		Appelez-nous	-
27	LIT9706634		Literature Parts (use & Care Guide)		Appelez-nous	-
27	LIT8204554		Literature Parts (repair Parts List)		Appelez-nous	-
27	W11312468		Pouring Shield   (Replaces: 9706633)				$ 43.26
