01 - Color Variation Parts
02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit

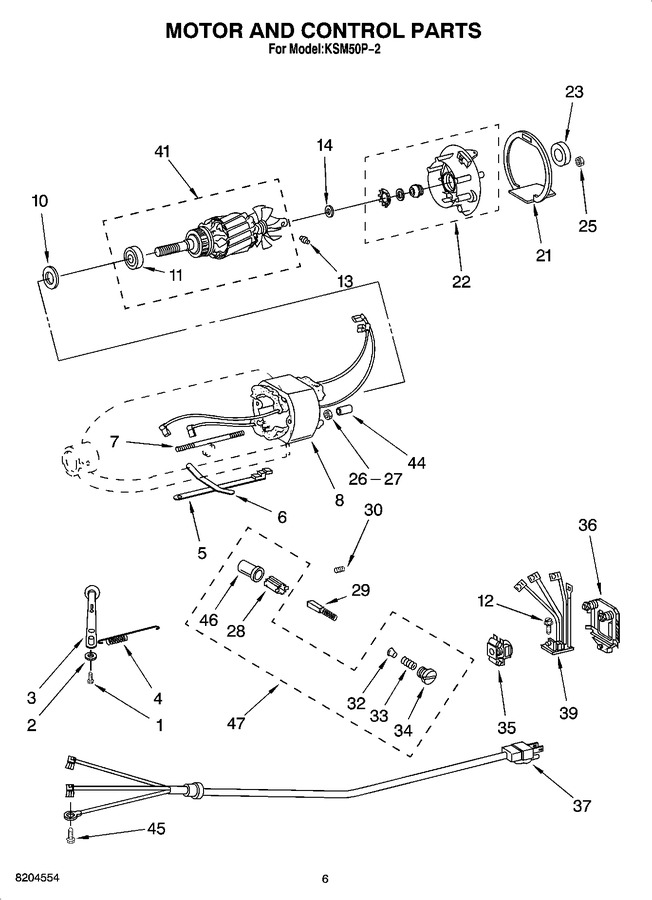

04 - Motor And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 6011-006971 | Screw, Pivot (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 2 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 3 | WP9709276 | Switch Lever And Stud (Replaces: 3184193) |
|
Immediately | $ 5.32 | ||||
| 4 | WP3183680 | Spring, Control Plate (Replaces: 3183680) |
|
$ 4.79 | |||||
| 5 | W11557271 | Speed Link & Cam (Replaces: 3184176) |
|
Immediately | $ 8.47 | ||||
| 6 | WP240205 | Spring, Flat (Replaces: 240205) |
|
$ 4.99 | |||||
| 7 | W10851015 | Screw, Stator (Replaces: 240769) |
|
$ 4.30 | |||||
| 8 | W10870869 | Field Assembly (115 Volts) Must Use With Item 41) (Replaces: 9702695) |
|
Immediately | $ 56.10 | ||||
| 10 | WP9704324 | Washer, Ball Bearing (front) (Replaces: 9704324) |
|
$ 4.72 | |||||
| 11 | 9708320 | Ball Bearing |
|
- | |||||
| 12 | W11084238 | Screw, Self Tapping 4-40 X 5/16`` Phil. Pan Hd. Type Tt (Replaces: 3400402) |
|
- | |||||
| 13 | WP16998 | Stud, Governor Drive (Replaces: 16998) |
|
$ 4.82 | |||||
| 14 | W11233557 | Washer, Spacing (Replaces: 3180162) |
|
$ 8.13 | |||||
| 21 | WP240775-1 | Seal, End (Replaces: 240775-1) |
|
Immediately | $ 5.12 | ||||
| 22 | WP3180526 | Bracket, Bearing Assembly (Replaces: 3180526) |
|
$ 20.80 | |||||
| 23 | 3180238 | Washer, Felt |
|
- | |||||
| 25 | 8533905 | Nut, Machine Hex (10-24) |
|
$ 26.90 | |||||
| 26 | 8533905 | Nut, Hex Machine (10-24) |
|
$ 26.90 | |||||
| 27 | W11170663 | Lock Washer 10 Ext. Shake- Proof (Replaces: 3400900) |
|
$ 4.54 | |||||
| 28 | W11656718 | Insert, Brush Holder (Replaces: 240680) |
|
$ 5.22 | |||||
| 29 | WPW10380496 | Brush & Spring Assembly (Replaces: 9706416) |
|
Immediately | $ 4.25 | ||||
| 30 | W11176201 | Set Screw, 10-24 X 1/4`` Hdls. Cup Pt (Replaces: 9707926) |
|
$ 4.75 | |||||
| 32 | WP116286 | Cap, Spring Seat (Replaces: 116286) |
|
$ 4.77 | |||||
| 33 | WP116287 | Spring, Cap (Replaces: 116287) |
|
$ 4.84 | |||||
| 34 | WP3184212 | Cap, Brush Holder (Replaces: 3184212) |
|
Immediately | $ 4.79 | ||||
| 35 | WPW10330804 | Governor Assembly (Replaces: 17830) |
|
Immediately | $ 16.39 | ||||
| 36 | WPW10119326 | Control Plate Assembly (Replaces: 240904-2) |
|
Immediately | $ 17.43 | ||||
| 37 | W11396625 | Cord & Plug (110 Volt) (Replaces: 9701025) |
|
$ 15.24 | |||||
| 39 | WPW10325124 | Phase Control Board (115 Volt) (Replaces: 9706595) |
|
Immediately | $ 17.30 | ||||
| 41 | W11133634 | Armature & Bearing (115 V. Incls. Illus 11 Must Use With Illus. 8) (Replaces: 9708315) |
|
$ 71.22 | |||||
| 44 | W11210996 | Sleeve, Motor Stud (Replaces: 4162634) |
|
- | |||||
| 45 | 3184609 | Screw, Self Tapping (10-24 X 1/2``) |
|
- | |||||
| 46 | WP3179908 | Housing, Brush Holder (Replaces: 3179908) |
|
$ 4.35 | |||||
| 47 | W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | ||||
| 47 | 4162154 | Water Jacket (k5awj) |
|
- | |||||
| 47 | 3177925 | Bowl Cover, Plastic Non-sealing |
|
- | |||||
| 47 | WPW10714130 | 5 Qt. Bowl, Polished Stainless Steel (Replaces: 4176100) |
|
$ 110.24 | |||||
| 47 | 4164839 | Speed Disc (service Tool) |
|
- | |||||
| 47 | 4162546 | Brush Holder (incls. Illus. 28, 32, 33, 34, & 46) |
|
$ 23.37 | |||||
| 47 | 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a)) |
|
- | |||||
| 47 | 4164749 | Food Grinder (fg-a) |
|
- | |||||
| 47 | 4164751 | Grain Mill (gm-a) |
|
- | |||||
| 47 | 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | |||||
| 47 | FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 | |||||
| 47 | RVSA | Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin (Replaces: 4164750) |
|
$ 115.50 | |||||
| 47 | W11312468 | Pouring Shield (kps2cl) (Replaces: 3177975) |
|
$ 43.26 | |||||
| 47 | 4164824 | Pasta Maker Plates Snpa |
|
- | |||||
| 47 | 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | |||||
| 47 | 3180616 | Cover, Decorative (cotton Polyester) |
|
- | |||||
| 47 | 4162838 | Food Tray (ft) |
|
- | |||||
| 47 | 4164748 | Juicer, Je |
|
- | |||||
| 47 | 4164747 | Can Opener, Co |
|
- | |||||
| 47 | 4164803 | Sausage Stuffer, Kit, Ssa |
|
- |
