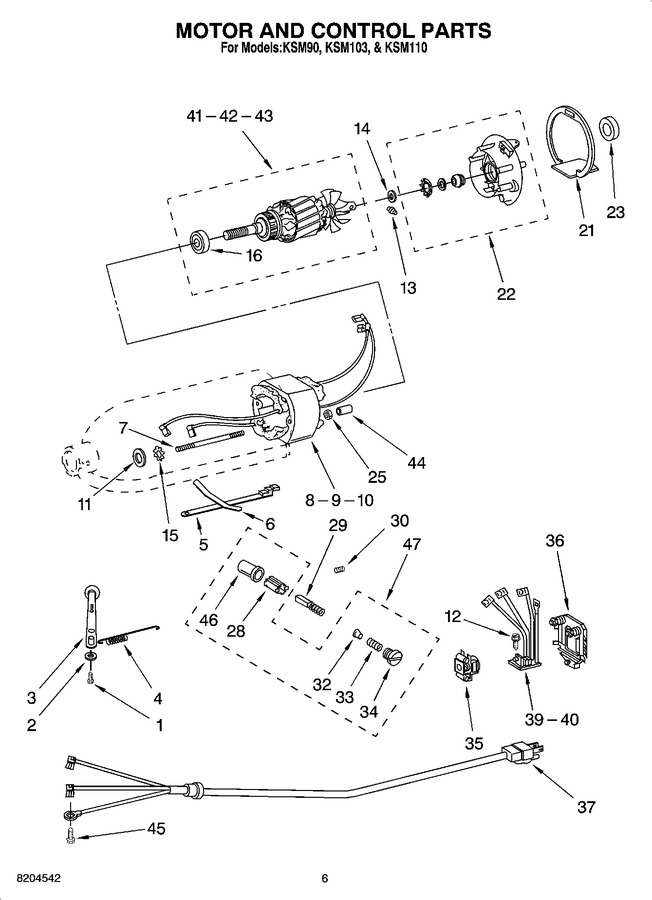

Diagram for 03 - Motor And Control Parts
03 - Motor And Control Parts

Diagram for 04 - Base And Pedestal Unit
04 - Base And Pedestal Unit


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 6011-006971 Screw, Pivot   (Replaces: 110679) In-Stock Immediately $ 3.59

2 WP116241 Washer, Spring   (Replaces: 116241) Special Order $ 5.19

3 WP9709276 Switch Lever And Stud (black)   (Replaces: 3184193) In-Stock Immediately $ 5.32

3 9709278 Switch Lever And Stud (buff)   (Replaces: 3184195) Special Order $ 26.31

3 WP9709277 Switch Lever And Stud (storm Grey)   (Replaces: 3184194) Special Order $ 4.94

4 W11188450 Spring, Control Plate (international)   (Replaces: 3183690) Appelez-nous -
4 WP3183680 Spring, Control Plate   (Replaces: 3183680) Special Order $ 4.79

5 W11557271 Speed Link & Cam   (Replaces: 3184176) In-Stock Immediately $ 8.47

6 WP240205 Spring, Flat   (Replaces: 4162035) Special Order $ 4.99

7 W10851015 Screw, Stator   (Replaces: 240769) Special Order $ 4.30

8 W10870869 Field Assy   (Replaces: 9702695) In-Stock Immediately $ 56.10

9 WPW10417246 Field Assy   (Replaces: 9701670) Special Order $ 48.47

10 4176217 Field Assembly (japan) Appelez-nous -
11 WP9704324 Washer, Bearing   (Replaces: 9704324) Special Order $ 4.72

12 W11084238 Screw, Self Tapping 4-40 X 5/16`` Phil. Pan Hd. Type Tt   (Replaces: 3400402) Appelez-nous -
13 WP16998 Stud, Governor Drive   (Replaces: 16998) Special Order $ 4.82

14 W11233557 Washer, Spacing   (Replaces: 3180162) Special Order $ 8.13

15 W11170663 Washer   (Replaces: 3400900) Special Order $ 4.54

16 9708320 Ball Bearing Appelez-nous -
21 WP240775-1 International   (Replaces: 3184356) In-Stock Immediately $ 5.12

21 WP240775-1 Seal, End   (Replaces: 240775-1) In-Stock Immediately $ 5.12

22 WP3180526 Bracket, Bearing Assembly   (Replaces: 3180526) Special Order $ 20.80

23 3180238 Washer, Felt Appelez-nous -
25 8533905 Nut, Machine Hex (10-24) Special Order $ 26.90

28 W11656718 Insert, Brush Holder   (Replaces: 240680) Special Order $ 5.22

29 WPW10380496 Brush, Carbon   (Replaces: 9706416) In-Stock Immediately $ 4.25

30 9707929 Set Screw Appelez-nous -
32 WP116286 Cap, Spring Seat   (Replaces: 116286) Special Order $ 4.77

33 WP116287 Spring, Cap   (Replaces: 116287) Special Order $ 4.84

34 WP3184211 Cap, Brush Holder (white)   (Replaces: 3184211) Special Order $ 4.54

34 3184213 Cap, Brush Holder (almond Creme) Appelez-nous -
34 WP3184212 Cap, Brush Holder (black)   (Replaces: 3184212) In-Stock Immediately $ 4.79

35 WPW10330804 Governor Assembly   (Replaces: 17830) In-Stock Immediately $ 16.39

36 WPW10119326 Control Plate Assembly   (Replaces: 240904-2) In-Stock Immediately $ 17.43

37 W11112762 Cord & Plug 110 Volt-white (international)   (Replaces: 9702318) Special Order $ 17.96

37 W11396625 Power Cord (white)   (Replaces: 9701025) Special Order $ 15.24

37 W11105837 Cord & Plug (japan)   (Replaces: 9704812) Special Order $ 21.30

37 9706755 Cord And Plug-black (taiwan) Appelez-nous -
37 W10908276 Cord And Plug-black (uk)   (Replaces: 9702315) Appelez-nous -
37 9704390 Cord And Plug-black (swiss) Appelez-nous -
37 W11112762 Cord & Plug-blk (international)   (Replaces: 9702319) Special Order $ 17.96

37 W11545825 Power Cord (black)   (Replaces: 9701026) In-Stock Immediately $ 12.72

37 W11221247 Cord And Plug (australia)   (Replaces: 9702368) Special Order $ 23.77

37 W10908276 Cord And Plug (uk)   (Replaces: 9702314) Appelez-nous -
37 9704389 Cord And Plug (swiss) Appelez-nous -
39 WPW10325124 Phase Control Board   (Replaces: 9706595) In-Stock Immediately $ 17.30

40 W11174552 Phase Control Board (230 Volt)   (Replaces: 9706596) Special Order $ 16.31

41 W11133634 Armature & Bearing (115 V. Incls. Illus 11 Must Use With Illus. 8)   (Replaces: 9708315) Special Order $ 71.22

42 W10900799 Armature & Bearing (230 Volts)   (Replaces: 9708316) Special Order $ 71.82

43 W11105834 Armature & Bearing (japan)   (Replaces: 9708314) Special Order $ 70.81

44 W11210996 Sleeve, Motor Stud   (Replaces: 4162634) Appelez-nous -
45 3184609 Screw, Self Tapping (10-32 X 1/4``) Phil. Pan Hd. Type Tt Appelez-nous -
46 WP3179908 Housing, Brush Holder   (Replaces: 3179908) Special Order $ 4.35

47 4162546 Brush Holder (incls. Illus. 28, 32, 33, 34, & 46) Special Order $ 23.37

4164839 Speed Disc (service Tool) Appelez-nous -
W10802058 Bowl, Satin Stainless   (Replaces: 4162160) Special Order $ 103.12

4164774 Fruit/vegetable Strainer And Food Grinder, Fvs/fga Appelez-nous -
4164824 Pasta Maker Plates Snpa Appelez-nous -
RVSA Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin   (Replaces: 4164750) Special Order $ 115.50

FVSP Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775) Special Order $ 117.81

4164768 Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) Appelez-nous -
4164751 Grain Mill (gm-a) Appelez-nous -
4164749 Food Grinder (fg-a) Appelez-nous -
4164778 Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs Appelez-nous -
W11200218 Grease, Planetary   (Replaces: 4160588) In-Stock Immediately $ 86.08

W11312468 Pouring Shield (kps2cl)   (Replaces: 3177975) Special Order $ 43.26

3180262 Bowl, 3 Qt. Special Order $ 68.75

W10802058 Bowl, Stainless With Handle   (Replaces: 4163337) Special Order $ 103.12

3177924 Bowl Cover, Plastic Non-sealing Appelez-nous -
4164803 Sausage Stuffer, Kit, Ssa Appelez-nous -
4164747 Can Opener, Co Appelez-nous -
4164748 Juicer, Je Appelez-nous -
4162838 Food Tray (ft) Appelez-nous -
3180617 Cover, Decorative (cotton Polyester) Appelez-nous -
