01 - Color Variation Parts
02 - Case, Gearing, And Planetary Unit
03 - Motor And Control Parts

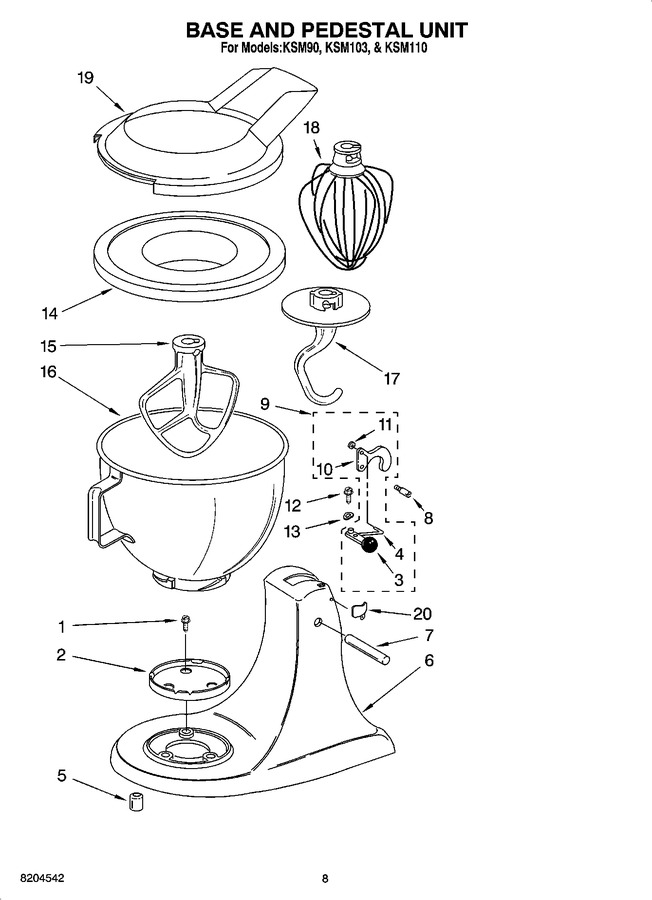

04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11544572 | Screw, 10-24 X 1/2`` (Replaces: 3400020) |
|
$ 8.41 | |||||
| 2 | WPW10191926 | Screw Cap Kit (Replaces: 4163032) |
|
Immediately | $ 19.03 | ||||
| 3 | WP9709280 | Lever, Latch (black) (Replaces: 4176024) |
|
Immediately | $ 4.62 | ||||
| 3 | WP9709267 | Lever, Latch (black) (Replaces: 3184178) |
|
$ 4.00 | |||||
| 3 | 242928-2 | Lever, Latch (white (storm Gray)) |
|
$ 28.96 | |||||
| 4 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 5 | WP9709707 | Foot, Base (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 7 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 8 | 103993 | Screw, Latch Bearing |
|
$ 24.95 | |||||
| 9 | 24452-2 | Latch, Link & Lever |
|
- | |||||
| 9 | WP3184200 | Latch, Link & Lever (international) (Replaces: 3184200) |
|
$ 13.44 | |||||
| 10 | W11246352 | Latch (Replaces: 4162206) |
|
$ 8.57 | |||||
| 11 | WS29-03 | Washer |
|
- | |||||
| 12 | 6011-006971 | Screw, Pivot (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | 4176018 | Cover, Bowl |
|
- | |||||
| 15 | WPW10672617 | Beater, Flat (Replaces: 9707669) |
|
Immediately | $ 24.92 | ||||
| 16 | W10802058 | Bowl And Base (4 1/2 Qt.) (Replaces: 4163336) |
|
$ 103.12 | |||||
| 17 | WPW10674618 | Dough Hook (Replaces: 9707671) |
|
Immediately | $ 31.90 | ||||
| 18 | WP9704329 | Whip-wire (Replaces: 9704329) |
|
Immediately | $ 29.90 | ||||
| 19 | W11312468 | Pouring Shield (Replaces: 9706633) |
|
$ 43.26 | |||||
| 19 | W11312468 | Pouring Shield, One-piece (international) (Replaces: 4176452) |
|
$ 43.26 | |||||
| 20 | WP3184264 | Head Lock (international) (white) (Replaces: 3184262) |
|
$ 8.20 | |||||
| 20 | WP3184264 | Head Lock (international) (black) (Replaces: 3184264) |
|
$ 8.20 | |||||
| LIT9707917 | Use And Care Guide (us) |
|
- | ||||||
| LIT8204542 | Literature Parts (repair Parts List) |
|
- | ||||||
| LIT9705125 | Use And Care Guide (japan) |
|
- | ||||||
| LIT9705170 | Literature, Guide, Use & Care (international) |
|
- |
