SELECT A DIAGRAM

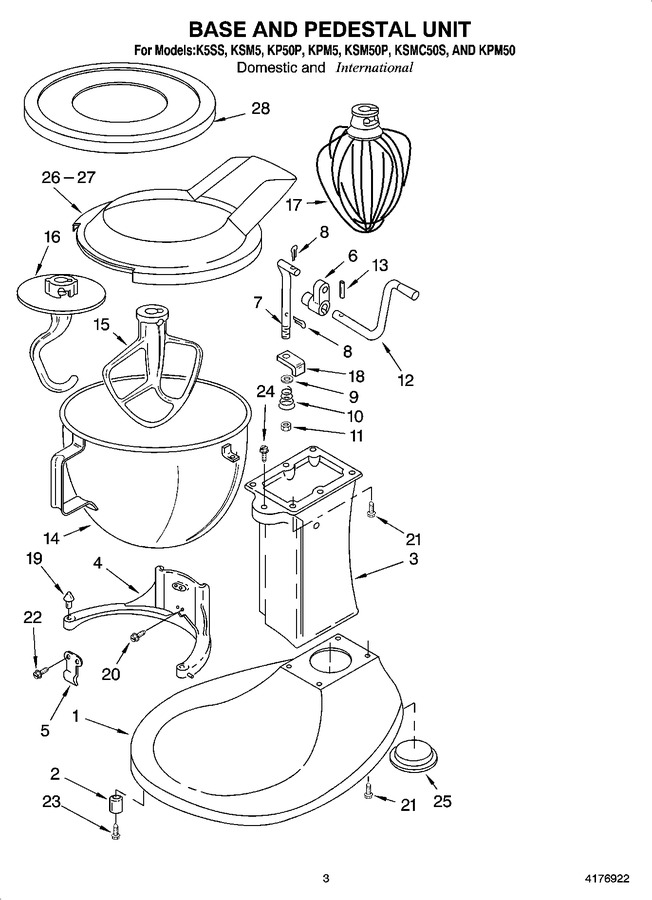

01 - Base And Pedestal Unit
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8211628 | Foot, Rubber (4) (Replaces: 9703414) |
|
$ 7.71 | |||||
| 5 | WP3182857 | Latch, Bowl Spring (Replaces: 3182857) |
|
Immediately | $ 5.29 | ||||
| 6 | WP241764 | Arm, Bowl Lift (Replaces: 4162874) |
|
Immediately | $ 8.57 | ||||
| 7 | W10598834 | Rod, Bowl Lift (Replaces: 4159620) |
|
$ 29.90 | |||||
| 8 | WP9704608 | Cotter Pin 5/64 X 1/2 (2) (Replaces: 9704608) |
|
$ 4.37 | |||||
| 9 | W11708396 | Washer (Replaces: 4159514) |
|
$ 4.60 | |||||
| 10 | 4159622 | Spring |
|
Immediately | $ 4.70 | ||||
| 11 | 8533907 | Nut, 1/4-28 (Replaces: 4159092) |
|
$ 24.83 | |||||
| 12 | W11812045 | Handle, Bowl Lift (Replaces: 4159615) |
|
$ 10.85 | |||||
| 13 | WP9703442 | Roll Pin (Replaces: 9703442) |
|
$ 4.28 | |||||
| 14 | W10802050 | Professional Mdl. (2 Bowls) (Replaces: 4162116) |
|
$ 122.88 | |||||
| 14 | WPW10714130 | Bowl (5 Qt) (Replaces: 4176144) |
|
$ 110.24 | |||||
| 15 | W10807813 | Beater, Flat (Replaces: 9707670) |
|
Immediately | $ 32.13 | ||||
| 15 | W11356332 | Professional Mdl. (Replaces: 4176182) |
|
$ 20.94 | |||||
| 16 | WPW10674621 | International Model (Replaces: 9708033) |
|
$ 51.22 | |||||
| 16 | WPW10674621 | Dough Hook (Replaces: 9707672) |
|
$ 51.22 | |||||
| 16 | WPW10674621 | Professional Mdl. (Replaces: 3183236) |
|
$ 51.22 | |||||
| 17 | WPW10731415 | International (Replaces: 4176306) |
|
Immediately | $ 37.93 | ||||
| 17 | WPW10731415 | Wire Whip (Replaces: 9704309) |
|
Immediately | $ 37.93 | ||||
| 18 | W11794323 | Bracket, Bowl Lift (Replaces: 4162022) |
|
$ 5.43 | |||||
| 19 | WP240185 | Pin, Bowl (Replaces: 4162028) |
|
$ 4.50 | |||||
| 20 | W10861883 | Screw, 10-24 X 1/2 (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 21 | WP4162403 | Screw, Special (Replaces: 4162403) |
|
$ 5.38 | |||||
| 22 | WP4159193 | Screw, 10-24 X 1/4 Machine Round Head (Replaces: 3400024) |
|
$ 5.07 | |||||
| 23 | 4159349 | Screw, 8 X 3/8 Phil. Rd. Hd. Type B |
|
- | |||||
| 24 | 3182904 | Screw, Dbl. Ended |
|
- | |||||
| 25 | 4176184 | Plug |
|
- | |||||
| 26 | W11312468 | Pouring Shield One-piece (international) (Replaces: 4176453) |
|
$ 43.26 | |||||
| 27 | W11312468 | Pouring Shield (Replaces: 9706633) |
|
$ 43.26 | |||||
| 28 | LIT4176922 | Literature Parts (repair Parts List) |
|
- | |||||
| 28 | LIT9705170 | Literature Parts (use & Care Guide (international)) |
|
- | |||||
| 28 | LIT9706978 | Literature Parts (5kpm50 Model) |
|
- | |||||
| 28 | 3177925 | Cover, Bowl (2) Professional Mdl. |
|
- | |||||
| 28 | LIT9706634 | Literature Parts (use & Care Guide) |
|
- |
