SELECT A DIAGRAM

01 - Base And Pedestal Unit


02 - Case, Gearing And Planetary Unit

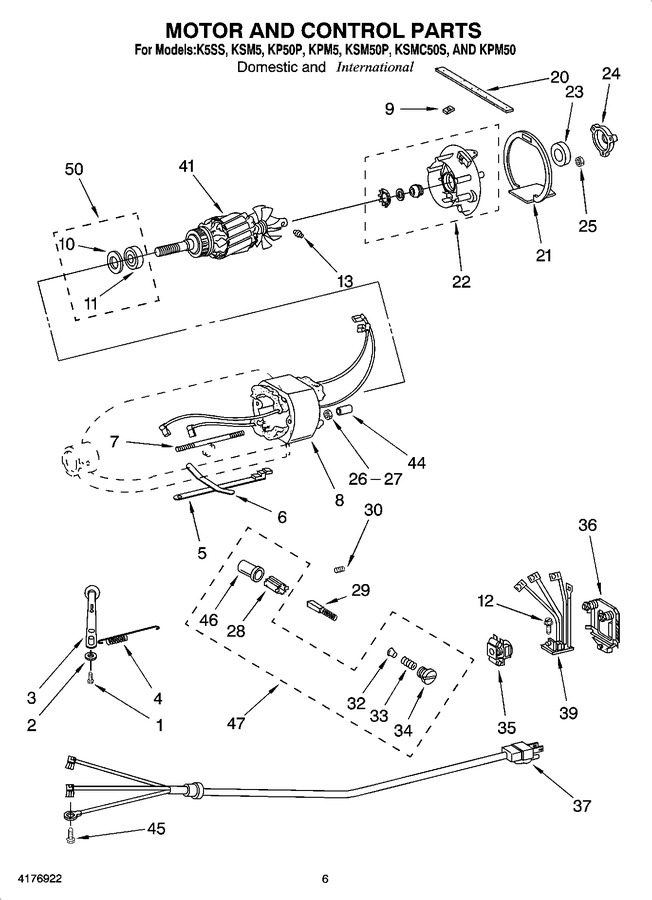

03 - Motor And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4160965		Screw, Pivot		Appelez-nous	-
2	4161697		Washer, Spring		Appelez-nous	-
3	WP9709277		Switch Lever And Stud (white (storm Gray))   (Replaces: 3184194)				$ 4.94
3	WP9709276		Switch Lever And Stud (black)   (Replaces: 3184193)			Immediately	$ 5.32
4	WP3183680		Spring, Control Plate   (Replaces: 3183680)				$ 4.79
5	W11557271		Speed Link & Cam   (Replaces: 3184176)			Immediately	$ 8.47
6	WP240205		Spring, Flat   (Replaces: 4162035)				$ 4.99
7	W10851015		Screw, Stator   (Replaces: 4162344)				$ 4.30
8	4176215		100 Volt (japan Only)		Appelez-nous	-
8	294046		(ksmc50s Model)		Appelez-nous	-
8	W10870869		Field Assembly (115 Volts) Must Use With Item 41)   (Replaces: 9702695)			Immediately	$ 56.10
8	WPW10417246		Field Assembly (220 Volts) (must Use With Item 41)   (Replaces: 9701670)				$ 48.47
9	9701584		Seal, Screw (kpm5 & Kpm50 Models Only)		Appelez-nous	-
10	WP9704324		Washer, Ball Bearing (front)   (Replaces: 9704324)				$ 4.72
11	W11133634		Ball Bearing   (Replaces: 4159001)				$ 71.22
12	W11084238		Screw, Self Tapping 4-40 X 5/16`` Phil. Pan Hd. Type Tt   (Replaces: 3400402)		Appelez-nous	-
13	WP16998		Stud, Governor Drive   (Replaces: 4159662)				$ 4.82
20	9701584		Kpm5 & Kpm50		Appelez-nous	-
20	9701104		Seal (international)		Appelez-nous	-
21	WP240775-1		Seal, End   (Replaces: 4162351)			Immediately	$ 5.12
21	WP240775-1		International   (Replaces: 3184356)			Immediately	$ 5.12
22	WP3180526		Bracket, Bearing Assembly   (Replaces: 3180526)				$ 20.80
23	3180238		Washer, Felt		Appelez-nous	-
24	WP3180526		Cap, Motor Bearing   (Replaces: 4162347)				$ 20.80
25	8533905		Nut, Machine Hex (10-24)				$ 26.90
26	8533905		Nut, Hex Machine (10-24)				$ 26.90
27	W11170663		Lock Washer 10 Ext. Shake- Proof   (Replaces: 3400900)				$ 4.54
28	W11656718		Insert, Brush Holder   (Replaces: 4162320)				$ 5.22
29	WPW10380496		Brush & Spring Assembly   (Replaces: 9706416)			Immediately	$ 4.25
30	W11176201		Set Screw, 10-24 X 1/4`` Hdls. Cup Pt   (Replaces: 4159262)				$ 4.75
32	WP116286		Cap, Spring Seat   (Replaces: 4161745)				$ 4.77
33	WP116287		Spring, Cap   (Replaces: 4161746)				$ 4.84
34	WP3184212		Cap, Brush Holder (black)   (Replaces: 3184212)			Immediately	$ 4.79
34	WP3184211		Cap, Brush Holder (white)   (Replaces: 3184211)				$ 4.54
35	WPW10330804		Governor Assembly   (Replaces: 4159675)			Immediately	$ 16.39
36	WPW10119326		Control Plate Assembly   (Replaces: 4162402)			Immediately	$ 17.43
37	9701044		Cord & Plug (110 Volt) (ksmc50s Model)		Appelez-nous	-
37	W11105837		Cord & Plug (110 Volt) (2-wire Cord (international))   (Replaces: 3180059)				$ 21.30
37	W11112762		Cord & Plug (110 Volt) (cord & Plulg (220 Volts))   (Replaces: 9702319)				$ 17.96
37	W11545825		Cord & Plug (110 Volt) (black)   (Replaces: 9701026)			Immediately	$ 12.72
37	W10908276		Cord & Plug (110 Volt) (kpm50 Model)   (Replaces: 9703280)		Appelez-nous	-
37	W10908276		Cord & Plug (110 Volt) (kpm5 Model)   (Replaces: 9702314)		Appelez-nous	-
37	W11396625		Cord & Plug (110 Volt) (white)   (Replaces: 9701025)				$ 15.24
37	W11112762		Cord & Plug 110 Volt-white (international)   (Replaces: 9702318)				$ 17.96
39	WPW10325124		Phase Control Board (115 Volt)   (Replaces: 9706595)			Immediately	$ 17.30
39	W11174552		Phase Control Board (220 Volts)   (Replaces: 9706596)				$ 16.31
41	W10900799		Armature/bearing   (Replaces: 241991-4)				$ 71.82
41	W11133634		Armature & Bearing (115 V.) Incls. Illus 11) (must Use With Illus. 8)   (Replaces: 4162959)				$ 71.22
41	W11105834		Armature (100 Volts) (japan Only)   (Replaces: 4176214)				$ 70.81
44	W11210996		Sleeve, Motor Stud   (Replaces: 4162634)		Appelez-nous	-
45	3184609		Screw		Appelez-nous	-
46	WP3179908		Housing, Brush Holder   (Replaces: 3179908)				$ 4.35
47	4162546		Brush Holder (incls. Illus. 28, 32, 33, 34, & 46)				$ 23.37
50	4176025		Ball Bearing And Washer Kit		Appelez-nous	-
