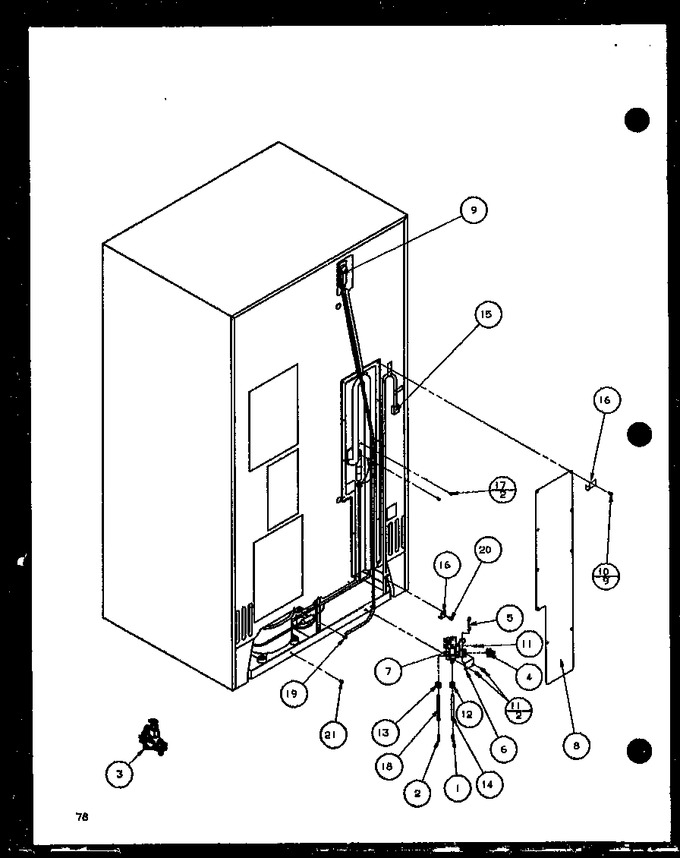

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A1055102		Spring K		Appelez-nous	-
3	A3034801		Saddle Valve		Appelez-nous	-
4	10127801		Coupling		Appelez-nous	-
5	B8374701		Clip, Water Valve		Appelez-nous	-
6	D7701601		Brkt, Water Valve		Appelez-nous	-
7	WPW10245167		Valve, Water   (Replaces: D7742202)				$ 120.73
8	D7777602		Cover, O.c.back		Appelez-nous	-
9	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
10	WP90767		Screw   (Replaces: M0211216)			Immediately	$ 7.82
11	681390		Screw   (Replaces: M0251015)				$ 13.06
12	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 10.97
13	M0753002		Nut, Sleeve		Appelez-nous	-
14	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 12.43
15	R0157154		Power Cord		Appelez-nous	-
16	M0103901		Clamp		Appelez-nous	-
17	WP489399		Screw   (Replaces: M0232903)				$ 6.95
18	D7787801		Tank, Coil Water		Appelez-nous	-
19	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 7.86
20	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
21	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.97
