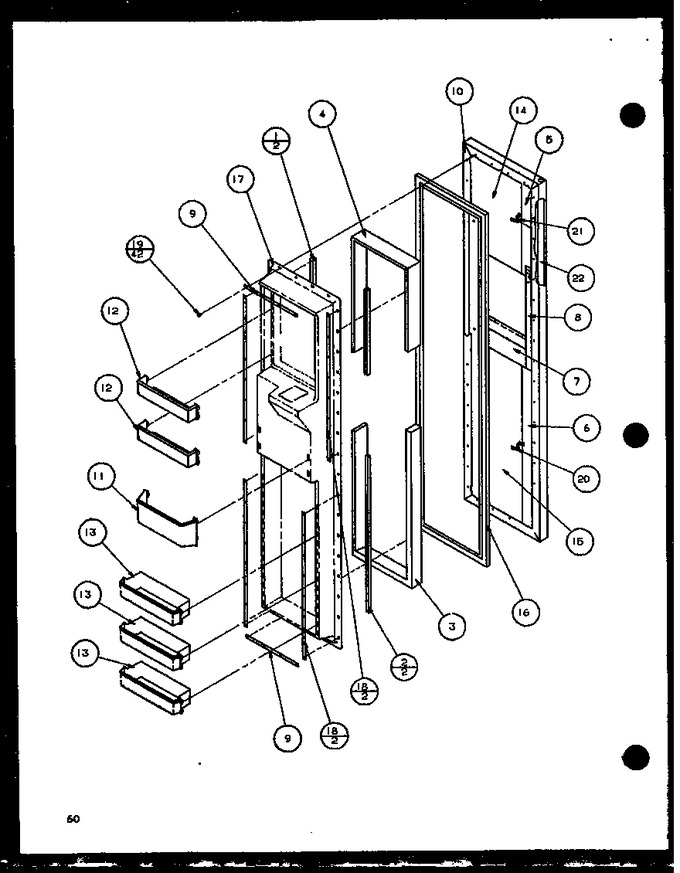

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987101		Seal, Door Dike		Appelez-nous	-
2	C8987103		Seal, Door Dike		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523583		Insulation, Per Ft.		Appelez-nous	-
5	B5629049		Insulation		Appelez-nous	-
6	B5629050		Insulation		Appelez-nous	-
7	B5629048		Insulation		Appelez-nous	-
8	B5629051		Insulation		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	D7757912		Fz Door Pan, Almond		Appelez-nous	-
11	D7783508		Shelf, Half Fz. Dr		Appelez-nous	-
12	D7783607		Shelf Fz Door		Appelez-nous	-
13	D7783707		Bucket Frz Door		Appelez-nous	-
14	D7800404		Foam Slab Door		Appelez-nous	-
15	D7800405		Foam Slab Door		Appelez-nous	-
16	D7870904		Gasket (w Frz Dr)		Appelez-nous	-
17	D7828503		Inner Door Frz		Appelez-nous	-
18	D7828601		Retainer, Door Liner		Appelez-nous	-
19	M0219730		Screw				$ 7.65
20	B8388701		Clip		Appelez-nous	-
21	B8388801		Clip		Appelez-nous	-
22	C8964201		Tube, Protective		Appelez-nous	-
