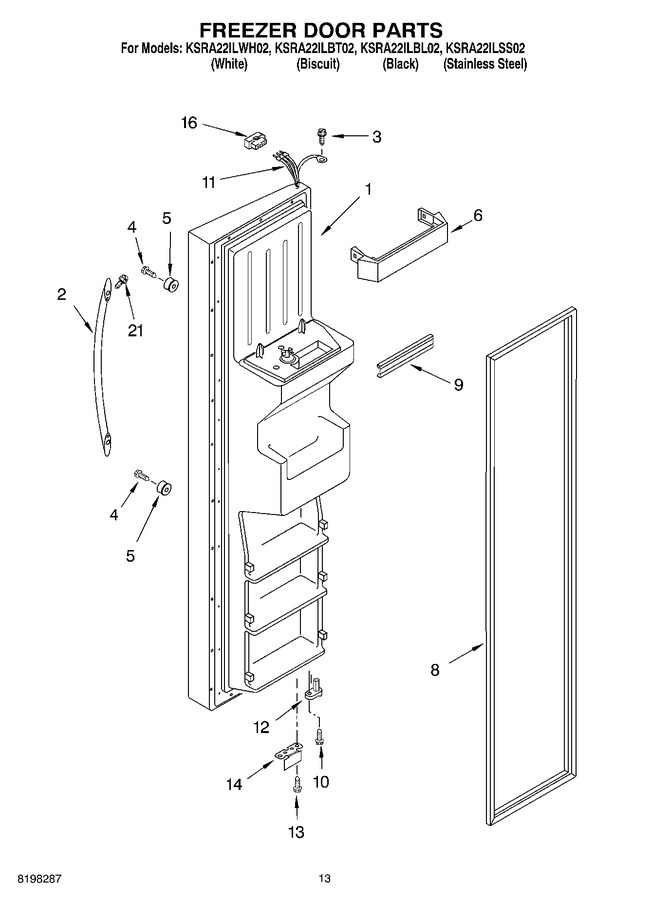

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206784W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2206784T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2206784B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2206784SB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2188635W		Handle (white)		Appelez-nous	-
2	2188635S		Handle (stainless Steel)		Appelez-nous	-
2	2188635T		Handle (biscuit)		Appelez-nous	-
2	2188635B		Handle (black)		Appelez-nous	-
3	WP489128		Screw   (Replaces: 488500)				$ 10.88
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	2203690		Stud, Handle		Appelez-nous	-
6	2171071		Trivet, Shelf (4)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	2207213		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
14	2200082B		Bracket, Door Stop (black)				$ 42.44
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
21	98654		Screw, Set		Appelez-nous	-
