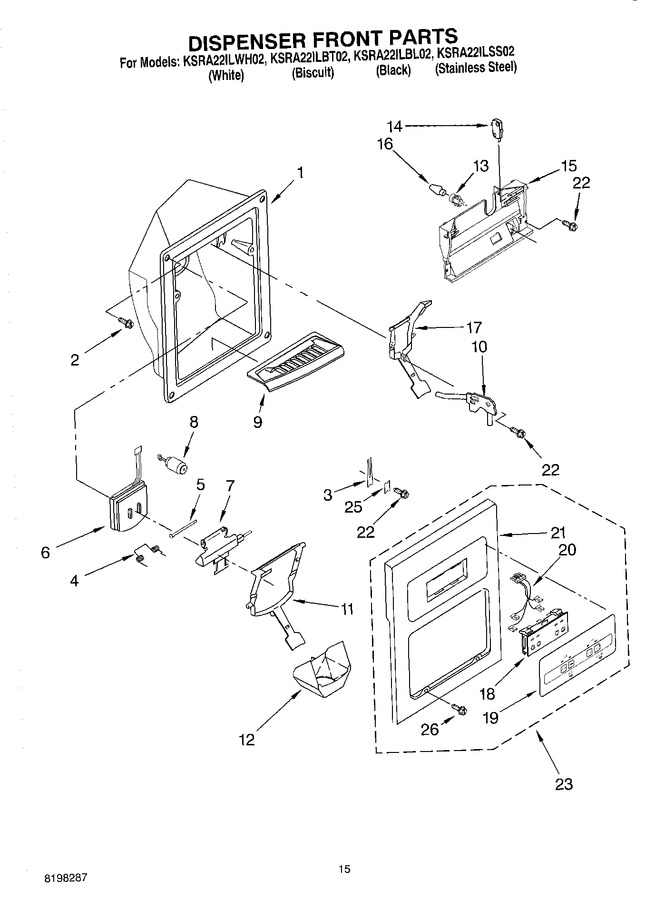

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180352) |
|
Immediately | $ 24.69 | ||||
| 7 | 2206423 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | 2207048B | Grille, Overflow (black) |
|
$ 30.06 | |||||
| 9 | 2207048T | Grille, Overflow (biscuit) |
|
- | |||||
| 9 | 2207048W | Grille, Overflow (white) |
|
- | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2209718) |
|
$ 134.13 | |||||
| 11 | 2180261 | Lever, Ice Dispenser (black) |
|
- | |||||
| 11 | 2186850 | Lever, Ice Dispenser (biscuit) |
|
- | |||||
| 11 | 2180259 | Lever, Ice Dispenser (white) |
|
$ 42.12 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 98.66 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.39 | ||||
| 16 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 17 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: 2180270) |
|
Immediately | $ 97.92 | ||||
| 17 | WPW10152858 | Lever, Water Dispenser (biscuit) (Replaces: 2186852) |
|
$ 104.60 | |||||
| 17 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: 2180268) |
|
$ 104.60 | |||||
| 18 | N/A | Switch Assembly (not Available, Order 23) |
|
- | |||||
| 19 | N/A | Overlay, Front Cover (not Available, Order 23) |
|
- | |||||
| 20 | 2187406 | Wire Assembly |
|
$ 120.63 | |||||
| 21 | N/A | Front Cover, Housing (not Available, Order 23) |
|
- | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 23 | 2207335W | Front Cover Assembly (includes Items 18, 19, 20 & 21) (white) |
|
- | |||||
| 23 | 2207335T | Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit) |
|
- | |||||
| 23 | 2207335B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) |
|
- | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 26 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 |
