01 - Top And Cabinet Parts

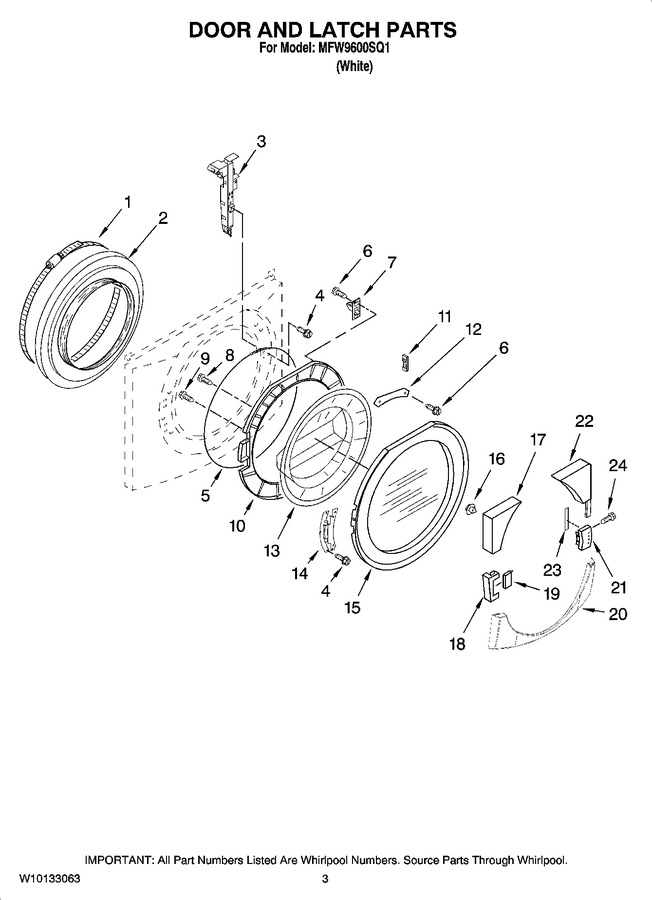

02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8182210		Clamp, Bellow To Tub   (Replaces: 8182210)			Immediately	$ 35.04
2	WP8182119		Bellow   (Replaces: 8182119)			Immediately	$ 187.27
3	WP8182634		Lock, Door   (Replaces: 8182634)			Immediately	$ 107.85
4	WP8540725		Screw   (Replaces: 8181760)				$ 7.68
5	W10902779		Clamp, Bellow To Front Panel   (Replaces: 8182211)			Immediately	$ 30.31
6	W11230114		Screw   (Replaces: 8181758)				$ 13.28
7	WP8181651		Hook, Door   (Replaces: 8181651)			Immediately	$ 12.46
8	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
9	WP8181660		Screw   (Replaces: 8181660)				$ 6.95
10	8182628		Frame, Door Back Support		Appelez-nous	-
11	W10128586		Clamp, Glass Support				$ 23.08
12	8181650		Clamp, Glass (2)		Appelez-nous	-
13	8181655		Glass, Door		Appelez-nous	-
14	8181843		Hinge, Door				$ 134.73
15	8183095		Frame, Door Front Assembly		Appelez-nous	-
16	8182779		Clip, Trim				$ 14.04
17	8182592		Trim, Upper Left		Appelez-nous	-
18	8182595		Cover, Hinge (outer)		Appelez-nous	-
19	8182596		Cover, Hinge (inner)		Appelez-nous	-
20	8182594		Trim, Lower				$ 88.96
21	8182591		Handle, Door		Appelez-nous	-
22	8182593		Trim, Upper Right		Appelez-nous	-
23	8182153		Foam, Door Handle		Appelez-nous	-
24	WP3400805		Screw   (Replaces: 8181759)				$ 7.19

    View Diagram in Separate Window       Print Part List
