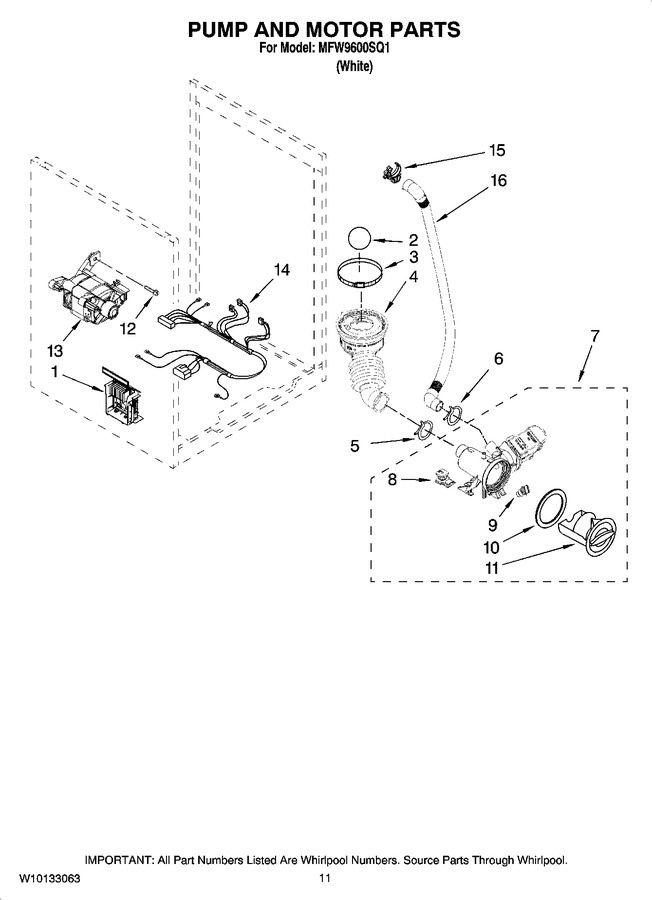

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10756692 | Motor Control Unit (Replaces: 8182706) |
|
Immediately | $ 407.85 | ||||
| 2 | W10121657 | Ball |
|
$ 20.03 | |||||
| 3 | WP696392 | Clamp (Replaces: 8181734) |
|
$ 8.12 | |||||
| 4 | WPW10467168 | Hose, Tub To Pump (Replaces: 8181732) |
|
Immediately | $ 38.31 | ||||
| 5 | WP285655 | Clamp, Pump Hose (Replaces: 8181753) |
|
Immediately | $ 8.39 | ||||
| 6 | WP3367052 | Clamp, Drain Hose (Replaces: 8181752) |
|
$ 8.32 | |||||
| 7 | 280187 | Pump (complete) (Replaces: 8182821) |
|
Immediately | $ 233.93 | ||||
| 8 | 8182820 | Grommet, Damper (rear) |
|
- | |||||
| 9 | WPW10526202 | Grommet, Damper (front) (Replaces: 8182816) |
|
$ 16.23 | |||||
| 10 | 8181736 | Seal, Filter Cap |
|
$ 36.51 | |||||
| 11 | 8183027 | Cap, Filter |
|
$ 28.31 | |||||
| 12 | W10128585 | Bolt, Motor |
|
$ 6.51 | |||||
| 13 | 8182793 | Motor, Drive |
|
$ 323.53 | |||||
| 14 | 8183035 | Harness, Motor |
|
- | |||||
| 15 | 8182209 | Retainer, Drain Hose |
|
$ 20.57 | |||||
| 16 | WPW10003250 | Drain Hose (inner) (Replaces: 8181740) |
|
Immediately | $ 34.59 | ||||
| 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 38.21 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | ||||||
| 285863 | Drain Extension |
|
Immediately | $ 32.43 | |||||
| 8541503 | Stack Kit (Replaces: 8212640) |
|
Immediately | $ 43.18 |
