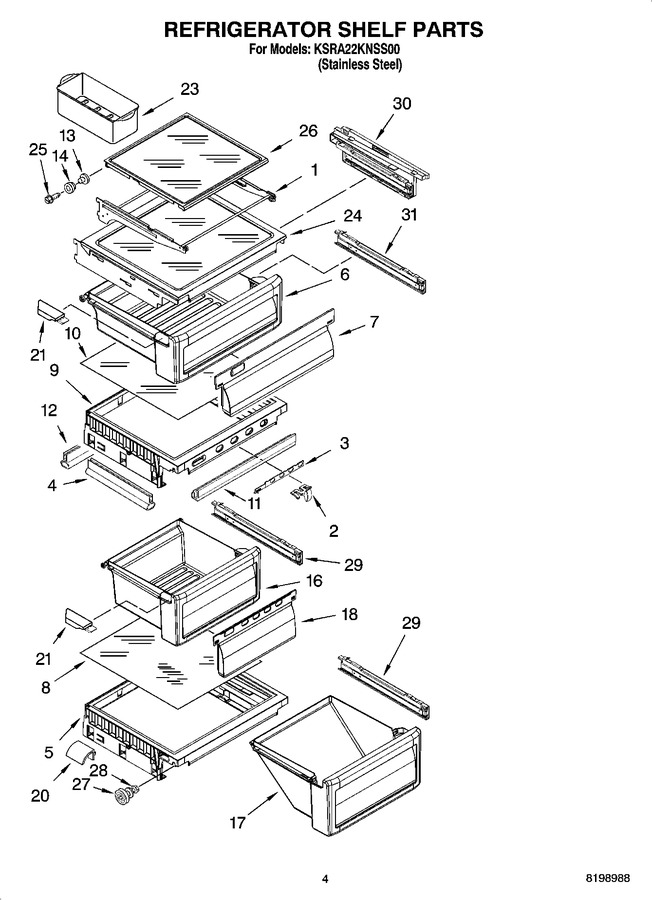

03 - Refrigerator Shelf Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Freezer Liner Parts


07 - Air Flow Parts


08 - Unit Parts


09 - Control Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301072		Frame Assembly		Appelez-nous	-
2	2301025		Button, Humidity				$ 74.39
3	2301026		Slide, Humidity		Appelez-nous	-
4	2301117		Gasket, Side (2)				$ 143.37
5	2301568		Cover, Meat Pan (includes Items 13, 14 & 15)		Appelez-nous	-
6	2301023		Snack Pan		Appelez-nous	-
7	2301006		Window, Snack Pan				$ 135.77
8	2301027		Glass, Cover		Appelez-nous	-
9	2301567		Cover, Crisper (includes 2, 3, 4, 11 & 12)				$ 237.90
10	2301028		Glass, Cover				$ 85.17
11	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 161.69
12	2301115		Gasket, Rear		Appelez-nous	-
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
16	W10916292		Crisper Pan (includes 18 & 21)   (Replaces: 2301031)				$ 209.16
17	2301022		Meat Pan (includes 20)		Appelez-nous	-
18	2301001		Window, Crisper				$ 75.59
20	2301126		Deflector		Appelez-nous	-
21	2301017		Cap, Crisper Pan (left Side)		Appelez-nous	-
21	2301016		Cap, Crisper Pan (right Side)		Appelez-nous	-
23	W10136387A		Egg Bin   (Replaces: 2216624)				$ 19.54
24	2301566		Shelf, Snack Pan				$ 151.83
25	489439		Screw		Appelez-nous	-
26	2301084		Shelf & Roller Assembly				$ 116.51
27	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
28	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
29	2301549		Glide Assembly (left Side)				$ 123.81
29	2301548		Glide Assembly (right Side)				$ 224.83
30	2301569		Support Assembly (right Side)				$ 118.73
30	2301570		Support Assembly (left Side)				$ 125.92
31	2301551		Glide Assembly (left Side)				$ 239.42
31	2301550		Glide Assembly (right Side)				$ 150.39
