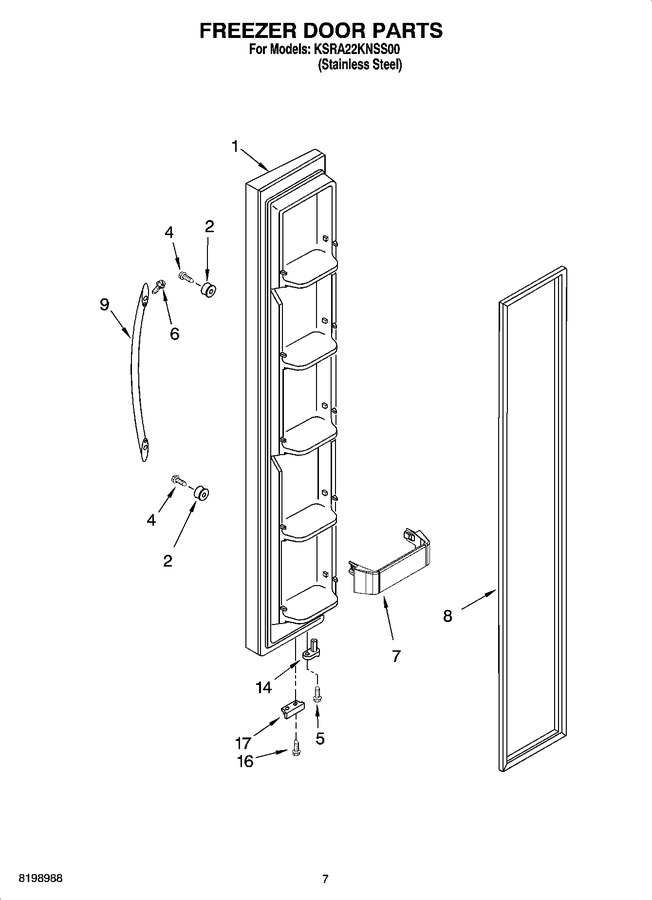

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2301180SB | Freezer Door (includes 8) (stainless Steel) |
|
- | |||||
| 2 | WPW10170540 | Stud, Handle Mounting (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 6 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 7 | 2223563 | Shelf Bin (5) |
|
- | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2221312) |
|
$ 310.39 | |||||
| 9 | 2255512S | Handle (stainless Steel) |
|
- | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 16 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 17 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 |
