Diagram for 01 - Top And Cabinet Parts
01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts
02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Tub And Basket Parts
05 - Tub And Basket Parts

Diagram for 06 - Pump And Motor Parts, Optional Parts (not Included)
06 - Pump And Motor Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8182210 Clamp, Bellow To Tub   (Replaces: 8182210) In-Stock Immediately $ 36.79

2 WP8182119 Bellow   (Replaces: 8182119) In-Stock Immediately $ 187.27

3 WP8182634 Lock, Door   (Replaces: 8182634) In-Stock Immediately $ 107.85

4 WP8540725 Screw   (Replaces: 8181760) Special Order $ 8.52

5 W10902779 Clamp, Bellow To Front Panel   (Replaces: 8182211) In-Stock Immediately $ 32.94

6 W11230114 Screw   (Replaces: 8181758) Special Order $ 13.94

7 WP8181651 Hook, Door   (Replaces: 8181651) In-Stock Immediately $ 13.08

8 WP8540282 Screw   (Replaces: 8181661) Special Order $ 12.14

9 WP8181660 Screw   (Replaces: 8181660) Special Order $ 7.30

10 8182628 Frame, Door Back Support Appelez-nous -
11 W10128586 Clamp, Glass Support Special Order $ 23.08

12 8181650 Clamp, Glass (2) Appelez-nous -
13 8181655 Glass, Door Appelez-nous -
14 8181843 Hinge, Door Special Order $ 134.73

15 8183070 Frame, Door Front Assembly (tuscan Silver) Appelez-nous -
15 8182151 Frame, Door Front Assembly (aluminum) Appelez-nous -
16 8182779 Clip, Trim Special Order $ 14.04

17 8182592 Trim, Upper Left (white) Appelez-nous -
17 8183065 Trim, Upper Left (black) Appelez-nous -
18 8182595 Cover, Hinge (outer) (white) Appelez-nous -
18 8183067 Cover, Hinge (outer) (black) Appelez-nous -
19 8183068 Cover, Hinge (inner) (black) Appelez-nous -
19 8182596 Cover, Hinge (inner) (white) Appelez-nous -
20 8182594 Trim, Lower (white) Special Order $ 88.96

20 8183066 Trim, Lower (black) Appelez-nous -
21 8182591 Handle, Door (white) Appelez-nous -
21 8183069 Handle, Door (black) Appelez-nous -
22 8183064 Trim, Upper Right (black) Appelez-nous -
22 8182593 Trim, Upper Right (white) Appelez-nous -
23 8182153 Foam, Door Handle Appelez-nous -
24 WP3400805 Screw   (Replaces: 8181759) Special Order $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

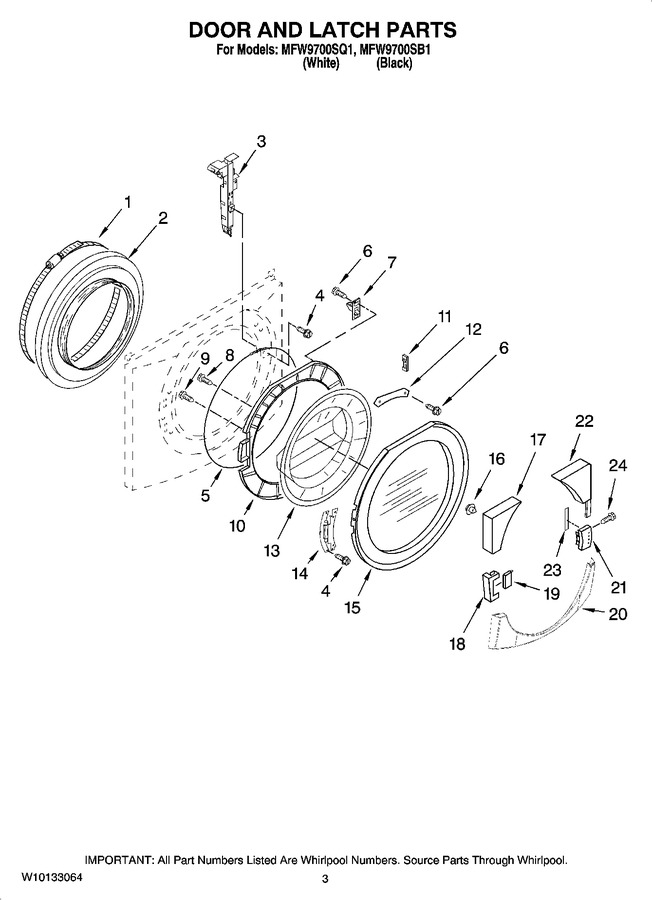

Diagram for MFW9700SQ1
