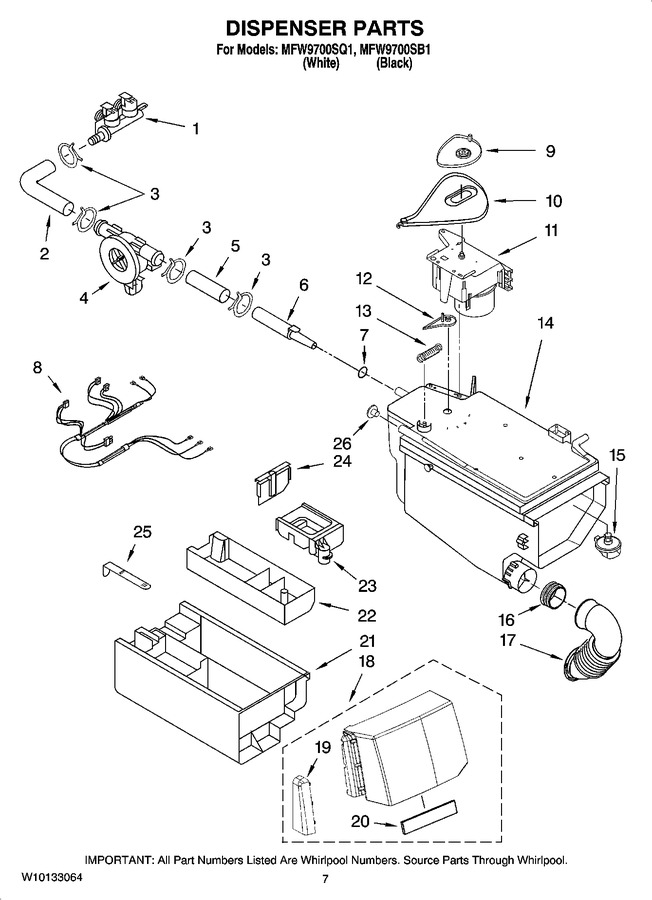

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Tub And Basket Parts
05 - Tub And Basket Parts

Diagram for 06 - Pump And Motor Parts, Optional Parts (not Included)
06 - Pump And Motor Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8182862 Valve, Inlet   (Replaces: 8182862) In-Stock Immediately $ 83.49

2 WP8181710 Hose, Flowmeter (l-shaped)   (Replaces: 8181710) Special Order $ 24.59

3 WP489503 Clamp, Hose   (Replaces: 8181751) In-Stock Immediately $ 10.75

4 WPW10110225 Flowmeter   (Replaces: 8181696) In-Stock Immediately $ 109.03

5 8181708 Hose, Flowmeter Special Order $ 37.73

6 8183010 Nozzle, Inlet Appelez-nous -
7 8181714 O-ring Appelez-nous -
8 8183022 Harness, Wiring (inlet Valve) Special Order $ 70.93

9 8181726 Cam, Actuator Special Order $ 9.80

10 8181725 Lever, Water Distribution Special Order $ 12.31

11 WPW10665207 Actuator   (Replaces: 8181723) Special Order $ 181.11

12 8181724 Connection, Lever Special Order $ 9.87

13 8181727 Spring, Lever Appelez-nous -
14 8183033 Dispenser (meteorite) Appelez-nous -
14 8183032 Dispenser (white) Appelez-nous -
15 WP8181712 Nozzle, Distribution   (Replaces: 8181712) Special Order $ 89.11

16 WP8181747 Seal   (Replaces: 8181747) In-Stock Immediately $ 26.03

17 WPW10005300 Tube, Dispenser To Bellow   (Replaces: 8181718) In-Stock Immediately $ 21.19

18 8183057 Handle, Drawer (white) Appelez-nous -
18 8183072 Handle, Drawer (black) Appelez-nous -
19 8182599 Endcap (white) Appelez-nous -
19 8183073 Endcap (black) Appelez-nous -
20 8182173 Cushion, Handle Appelez-nous -
21 WP8181720 Drawer, Detergent (meteorite)   (Replaces: 8182160) In-Stock Immediately $ 110.01

21 WP8181720 Drawer, Detergent (white)   (Replaces: 8181720) In-Stock Immediately $ 110.01

22 8182184 Container, Detergent (meteorite) Special Order $ 32.13

22 8181722 Container, Detergent (white) Special Order $ 31.80

23 8182161 Siphon, Bleach/softener (meteorite) Special Order $ 40.96

23 8182665 Siphon, Bleach/softener (white) Special Order $ 21.63

24 8182162 Separator (meteorite) Special Order $ 39.67

24 8181730 Separator (white) Special Order $ 35.90

25 8181721 Hook, Drawer Special Order $ 37.02

26 8182123 Cap Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
