SELECT A DIAGRAM

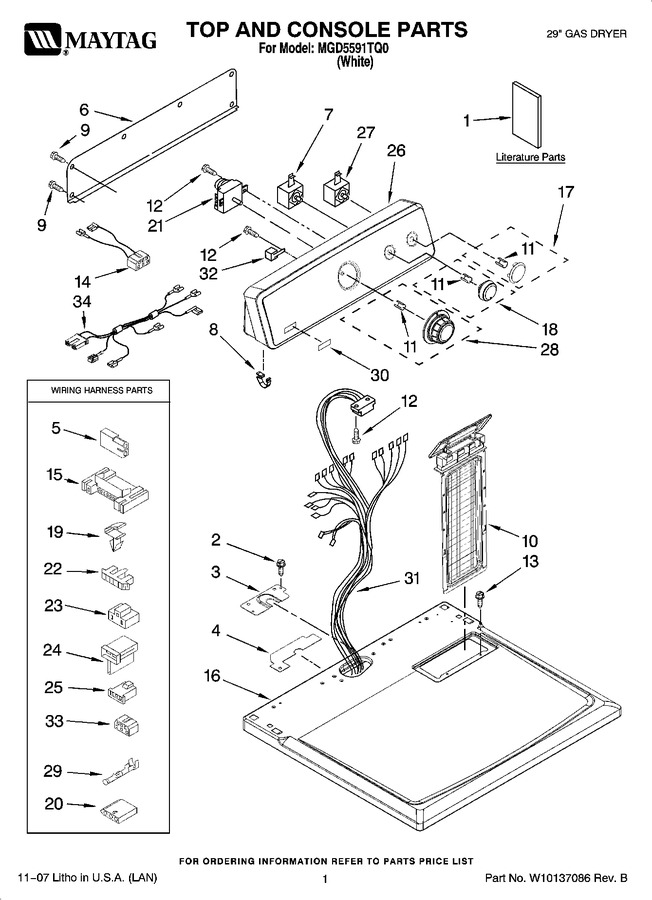

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10088779 | Use & Care Guide |
|
- | |||||
| 1 | W10141115 | Wiring Diagram |
|
- | |||||
| 1 | W10150652 | Sheet, Cycle Feature |
|
- | |||||
| 2 | W11693756 | Screw, 8-18 X 3/4 (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 3 | 8565981 | Bracket, Harness |
|
- | |||||
| 4 | W10118608 | Seal-harness |
|
- | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 7 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 124.91 | |||||
| 8 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | 8565973 | Screen, Lint |
|
$ 37.73 | |||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | W10110861 | Wire, Jumper (temperature) |
|
- | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 51.86 | ||||
| 16 | W10112597 | Top |
|
- | |||||
| 17 | W10110031 | Knob, Push-to-start |
|
- | |||||
| 18 | WPW10110029 | Knob, Control (1) (Replaces: W10110029) |
|
$ 52.77 | |||||
| 19 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 20 | 3936144 | Connector |
|
$ 20.21 | |||||
| 21 | 8578909 | Timer Assembly (60 Hz.) |
|
- | |||||
| 22 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 23 | 3401144 | Connector (pts) Relay |
|
$ 12.20 | |||||
| 24 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 5.73 | |||||
| 25 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 6.95 | |||||
| 26 | W10086729 | Shell & Console Assembly (includes: Illus. 30) |
|
- | |||||
| 27 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 28 | W10110030 | Timer-knob Assembly |
|
$ 26.39 | |||||
| 29 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 30 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 68.61 | |||||
| 31 | W10110866 | Harness, Wiring |
|
- | |||||
| 32 | WP694419 | Mini-buzzer (Replaces: 694419) |
|
$ 127.67 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 34 | W10119726 | Wire, Jumper (timer Buzzer) |
|
- |
