SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

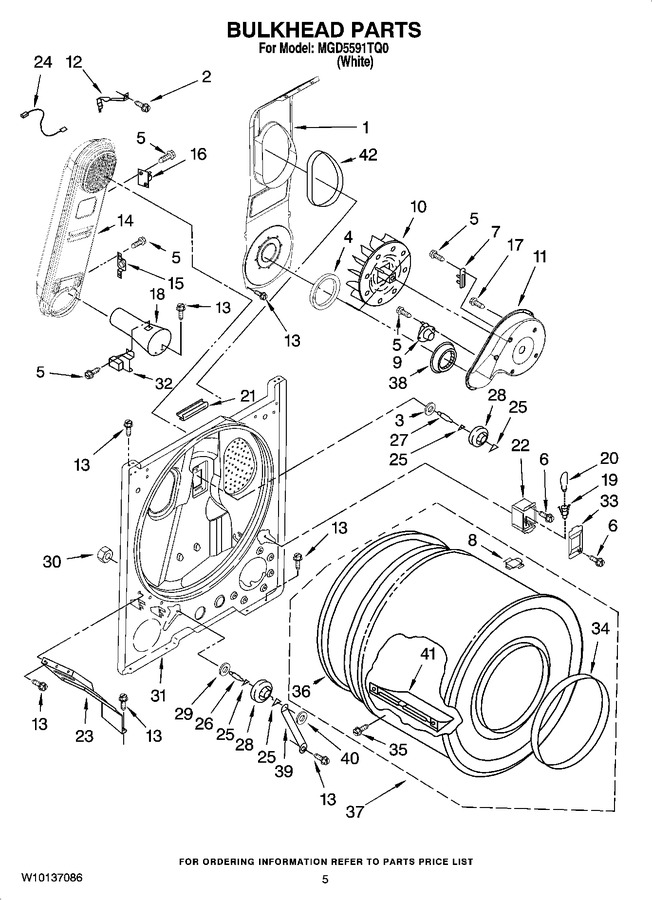

03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8519777 | Lint Chute Assembly |
|
- | |||||
| 2 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 3 | WP3388703 | Washer, Support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 7 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | 8066086 | Drum Hole Plug |
|
$ 11.29 | |||||
| 9 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 10 | W10801999 | Wheel, Blower (Replaces: 3406963) |
|
$ 147.38 | |||||
| 11 | 8577233 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 15.05 | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 279980 | Box, Heater (Replaces: 8530285) |
|
$ 331.29 | |||||
| 15 | W11050897 | Thermostat, 205 F (96c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 15.30 | ||||
| 17 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 18 | WP8066048 | Funnel, Burner (Replaces: 8066048) |
|
$ 151.68 | |||||
| 19 | W11700522 | Socket Assembly (Replaces: W10136369) |
|
$ 76.81 | |||||
| 20 | WP22002263 | Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 21 | 686889 | Pad, Blower Housing (Replaces: 3392247) |
|
- | |||||
| 22 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 23 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 58.88 | |||||
| 24 | WP3401707 | Wire, Jumper (Replaces: 3401707) |
|
$ 86.59 | |||||
| 25 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 26 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 27 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 28 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 29 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.55 | |||||
| 30 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 31 | 8529957 | Bulkhead |
|
- | |||||
| 32 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 33 | W11226088 | Lens, Drum Light (Replaces: 8532165) |
|
$ 32.64 | |||||
| 34 | WP3394509 | Ring, Bearing (Replaces: 3394509) |
|
$ 131.65 | |||||
| 35 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.80 | ||||
| 36 | 239087 | Seal, Rear Drum (Replaces: 8066085) |
|
Immediately | $ 62.78 | ||||
| 37 | 697760 | Drum Assembly (Replaces: 3396777) |
|
$ 435.14 | |||||
| 38 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 | |||||
| 39 | 3976435 | Bracket, Support |
|
$ 43.74 | |||||
| 40 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 41 | WP342847 | Baffle, Drum (1) (Replaces: 342847) |
|
$ 154.33 | |||||
| 42 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 |
