SELECT A DIAGRAM

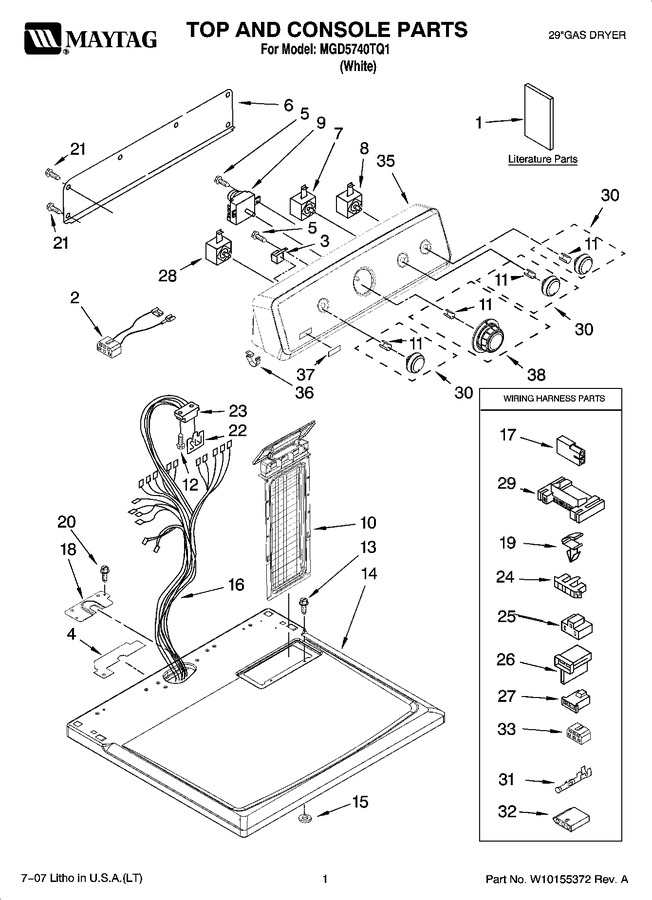

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10089171		Sheet, Cycle Feature		Appelez-nous	-
1	W10088775		Use & Care Guide		Appelez-nous	-
1	W10118081		Wiring Diagram		Appelez-nous	-
2	W10113080		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	W10112603		Seal-harness		Appelez-nous	-
5	WP90767		Screw, 8-18 X 5/8   (Replaces: 8533971)			Immediately	$ 7.82
6	W10112577		Panel, Rear Console		Appelez-nous	-
7	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 223.93
8	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 85.60
9	WP8566184		Timer Assembly 60 Hz.   (Replaces: 8566184)			Immediately	$ 277.09
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 52.03
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.06
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	W10112599		Top				$ 148.65
15	237446		Washer (top/chute)		Appelez-nous	-
16	W10110996		Harness, Wiring		Appelez-nous	-
17	717252		Plug, 2-way		Appelez-nous	-
18	W10112578		Bracket-harness		Appelez-nous	-
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
20	WP33001882		Screw, 8-18 X 7/16   (Replaces: 337686)				$ 79.72
21	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
22	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 314.22
23	3391885		Connector, Edge				$ 90.72
24	3397269		Connector-timer				$ 25.55
25	3401144		Connector (pts) Relay				$ 12.81
26	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 6.95
28	WP3405156		Switch Rotary (twist Mount)   (Replaces: 3405156)				$ 145.51
29	3395683		Connector, Motor			Immediately	$ 54.45
30	WPW10110029		Knob, Control (3)   (Replaces: W10110029)				$ 52.77
31	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
32	3936144		Connector				$ 21.22
33	3347243		Connector 6-circuit		Appelez-nous	-
35	W10086722		Console & Control Panel Assembly (includes, Illus. 36 & 37)		Appelez-nous	-
36	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
37	W10203949		Badge Assembly   (Replaces: W10112569)				$ 68.61
38	W10110030		Timer-knob Assembly				$ 26.39
