SELECT A DIAGRAM

01 - Top And Console Parts

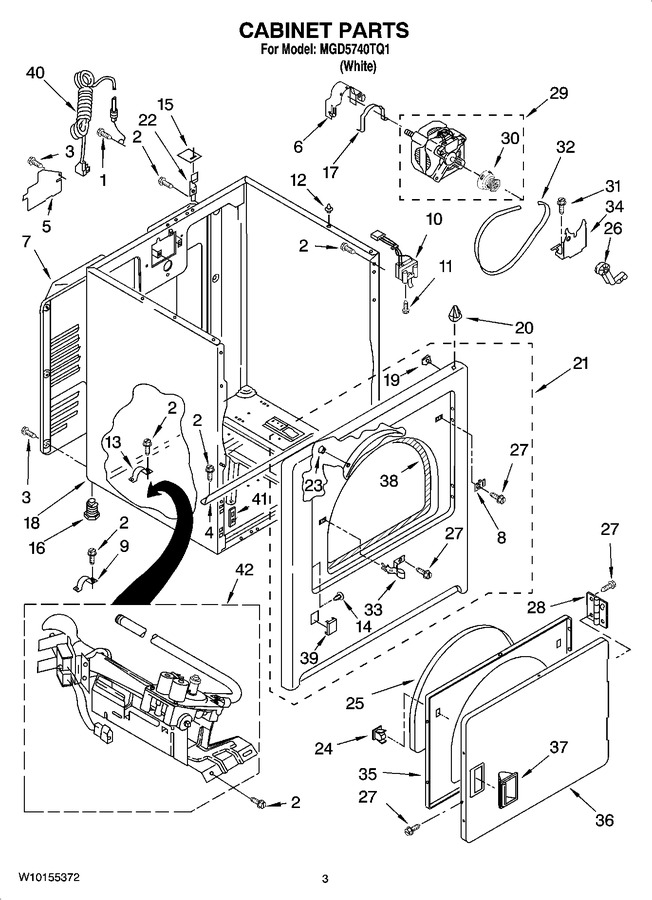

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 8.20
2	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8541400		Bracket, Cabinet		Appelez-nous	-
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 629.75
6	WP3404162		Clamp-motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
7	280043		Panel, Rear   (Replaces: 3396805)				$ 358.37
8	WP3403630		Plug, Strike   (Replaces: 3403630)				$ 7.53
9	341029		Clamp, Elbow   (Replaces: 3980175)		Appelez-nous	-
10	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
12	98669		Locator, Top				$ 12.03
13	341029		Clamp, Pipe		Appelez-nous	-
14	WP3404413		Plug, Hole   (Replaces: 3404413)			Immediately	$ 7.95
15	18849		Pad-top Hinge				$ 21.15
16	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
17	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
18	8533643		Cabinet (includes Illus. 4)   (Replaces: 8530603)				$ 419.22
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 12.68
21	3403447		Panel Front		Appelez-nous	-
22	WP8066217		Hinge, Top (2)   (Replaces: 8066217)				$ 7.82
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
24	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
25	W10861521		Seal-door   (Replaces: 3405246)			Immediately	$ 58.69
26	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
27	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
28	WPW10362431		Hinge, Door   (Replaces: 3405514)			Immediately	$ 7.91
29	279827		Motor, Assembly 60 Hz.   (Replaces: 8066206)			Immediately	$ 191.95
30	WP8066184		Pulley-60 Hz.   (Replaces: 8066184)			Immediately	$ 51.02
31	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
32	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
33	W11429589		Strike, Panel   (Replaces: 3403431)			Immediately	$ 20.99
34	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
35	WP3402341		Door, Rear   (Replaces: 3402341)				$ 198.77
36	W10861227		Door, Front (white)   (Replaces: 3402335)				$ 269.26
37	W11109500		Handle, Door (white)   (Replaces: 8565970)				$ 87.79
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
39	3394975		Plug, Front Panel (white)				$ 5.70
40	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
41	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34

    View Diagram in Separate Window       Print Part List
