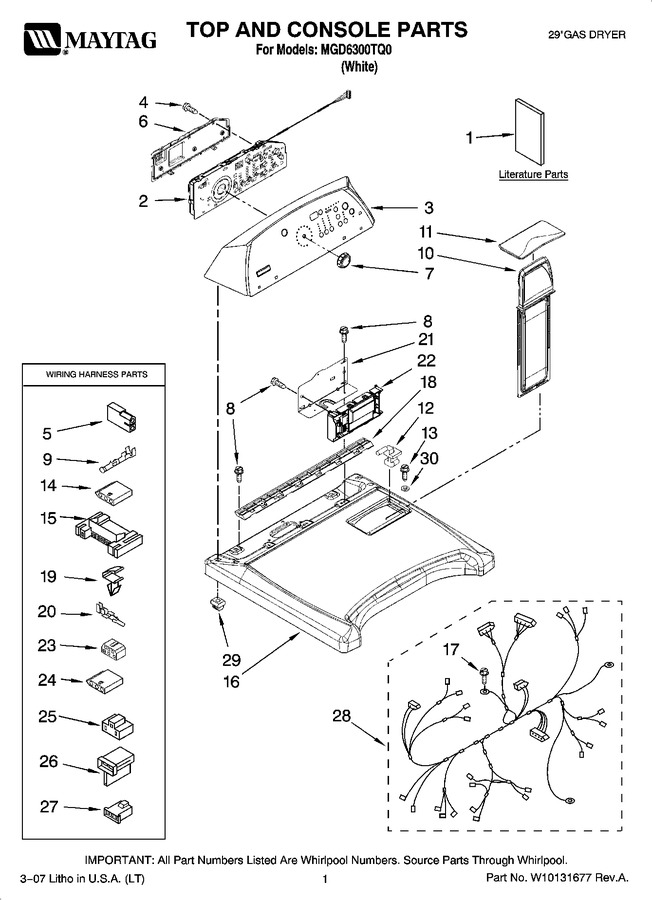

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557890 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10114195		Wiring Diagram		Appelez-nous	-
1	W10114206		Guide, Quick Start		Appelez-nous	-
1	W10088778		Use & Care Guide		Appelez-nous	-
2	W10051096		Assembly, User Interface				$ 252.17
3	W10120084		Panel, Console		Appelez-nous	-
4	WP4449745		Screw, 6-19 X 3/64   (Replaces: W10003770)				$ 7.98
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	8564265		Cover, Rear Ui-assembly				$ 142.60
7	W10110196		Knob, Assembly				$ 46.56
8	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
9	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
10	WP8572270		Assembly, Lint Screen   (Replaces: 8572270)			Immediately	$ 104.35
11	W10044320		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: W10044480)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: W10044470)				$ 8.11
13	WP3196557		Screw, 8-18 X 5/8   (Replaces: 3196537)			Immediately	$ 7.95
14	3936144		Connector				$ 21.22
15	3395683		Connector, Motor			Immediately	$ 54.45
16	8565025		Top		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
18	8558863		Bracket, Console				$ 33.78
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
20	94613		Terminal		Appelez-nous	-
21	8563853		Bracket, Machine Controller		Appelez-nous	-
22	W10111610		Control, Electronic		Appelez-nous	-
23	3347243		Connector 6-circuit		Appelez-nous	-
24	353424		Connector Sensor				$ 18.95
25	3401144		Connector (pts) Relay				$ 12.81
26	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	W10111432		Harness, Wiring		Appelez-nous	-
29	8558853		Screw, Grommet (2)		Appelez-nous	-
30	237446		Washer (top/chute)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
