| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

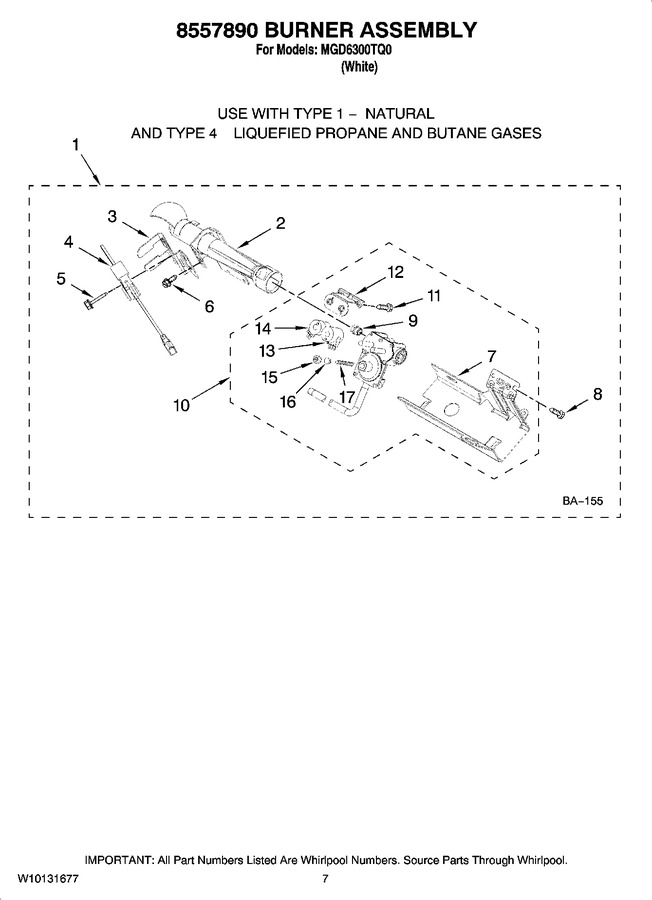

| 1 | 8557890 | Burner Assembly 60 Hz. (type 1) (white Rodgers) |
|
$ 247.25 | |||||
| 2 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 3 | W11236646 | Washer-support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 8 | 8539889 | Harness, Flame Switch |
|
- | |||||
| 9 | WP8577274 | Thermister, Internal-bias (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 186.85 | |||||
| 12 | 8546149 | Clip-heater Box |
|
- | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 8544803 | Box, Heater |
|
- | |||||
| 15 | W11050897 | Thermostat, 205 F (96c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 16 | 8544810 | Collar, Lint Chute |
|
$ 36.27 | |||||
| 17 | 8558890 | Bulkhead, Front |
|
- | |||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 156.50 | |||||
| 19 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 76.81 | |||||
| 20 | WP22002263 | Bulb (Replaces: 3406126) |
|
Immediately | $ 14.85 | ||||
| 21 | 8544813 | Seal, Lint Chute |
|
$ 82.48 | |||||
| 22 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 23 | 8565688 | Baffle, Drum (3) |
|
$ 166.20 | |||||
| 24 | W10549615 | Drum, Assembly (Replaces: 8557270) |
|
$ 444.51 | |||||
| 25 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 15.30 | ||||
| 26 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 27 | W11812294 | Nut 3/8-16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 28 | 8573836 | Shield, Exhaust |
|
$ 39.35 | |||||
| 29 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.80 | ||||
| 30 | 8576468 | Pad, Sensor |
|
$ 41.52 | |||||
| 31 | 280140 | Seal, Drum (Replaces: 8557277) |
|
Immediately | $ 73.88 | ||||
| 32 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 33 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 40 | W10053480 | Bracket, Lint Chute |
|
- |
