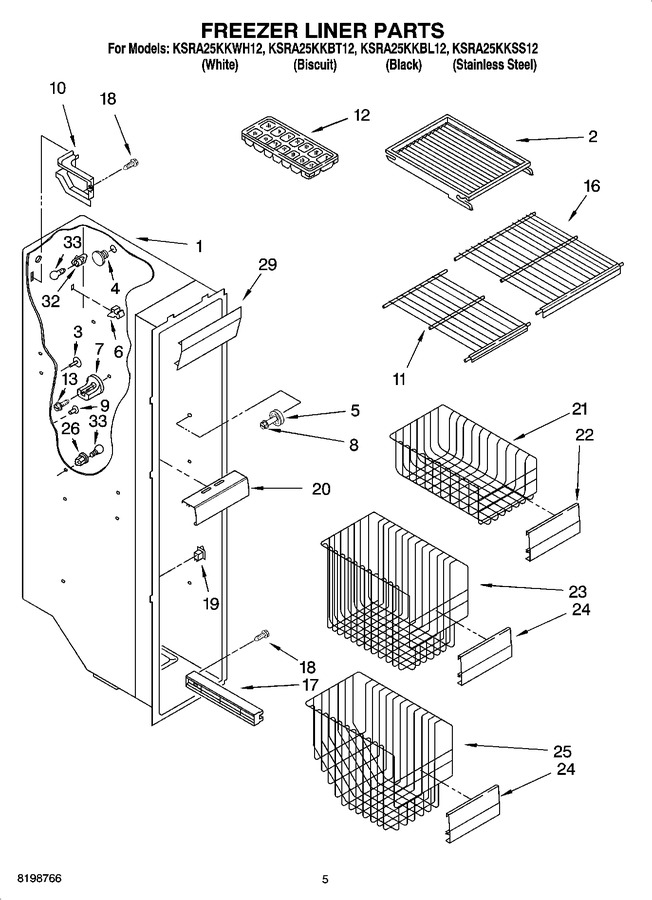

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	2174493		Shelf, Top Compartment		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
4	940014		Hole Plug				$ 18.33
5	WP2196483		Stud Assy   (Replaces: 2196483)				$ 10.35
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196207		Stud, Rear				$ 7.61
8	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
9	2176134		Grommet (2)				$ 5.83
10	2160912		Cover, Wiring		Appelez-nous	-
11	WP2174267		Shelf   (Replaces: 2174267)				$ 88.90
12	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
13	W10142289		Screw   (Replaces: 3400893)				$ 9.15
16	2198478		Shelf		Appelez-nous	-
17	2261448		Shelf Track (left Side (3))				$ 46.07
17	2261449		Shelf Track (right Side (3))				$ 46.07
18	WP489478		Screw   (Replaces: 489478)				$ 7.75
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
20	2198479		Light Lens		Appelez-nous	-
21	2181763		Basket, Shallow		Appelez-nous	-
22	2171767		Front, Basket		Appelez-nous	-
23	2223539		Basket, Square		Appelez-nous	-
24	2305580K		Front, Basket   (Replaces: 2171766)				$ 57.42
25	2223535		Basket, Sloped		Appelez-nous	-
26	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
29	2171705		Light Lens				$ 94.68
32	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
33	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 18.67
