Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2212005 Control Box Appelez-nous -
2 2216879 Cover Appelez-nous -
3 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

4 WP2149705 Switch, Light   (Replaces: 2219875) In-Stock Immediately $ 40.40

6 2252113 Control Board Assembly Appelez-nous -
7 WP488488 Screw   (Replaces: 489290) Special Order $ 8.52

8 940014 Hole Plug Special Order $ 18.33

9 2212012 Insert, Control Board Appelez-nous -
17 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67

19 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

20 2216115 Harness, Control Box Appelez-nous -
21 WP1115374 Clip, Wiring   (Replaces: 1115374) Special Order $ 8.14

25 2220446 Overlay, Control Box Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

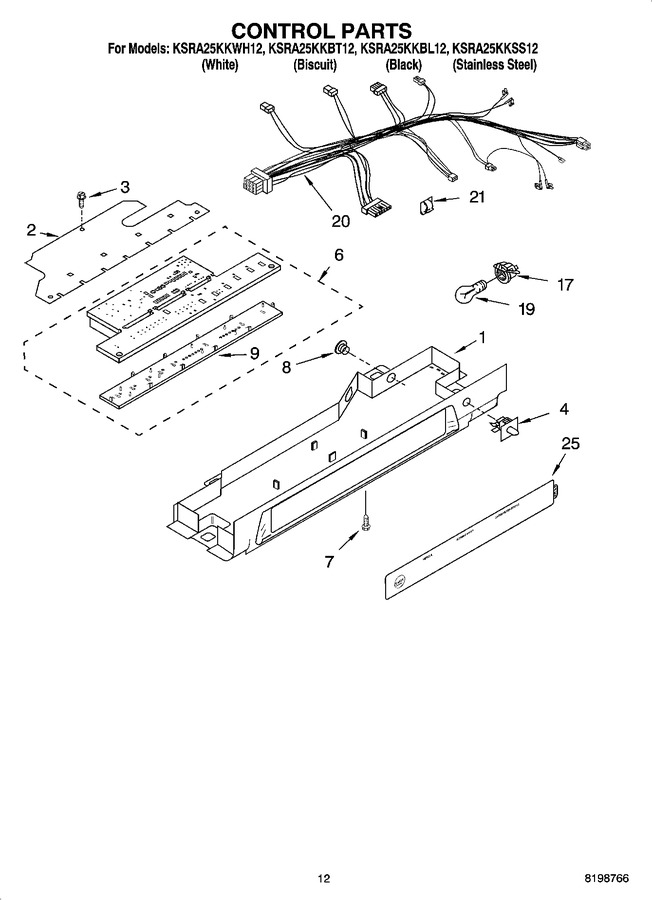

Diagram for KSRA25KKBT12
