01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)

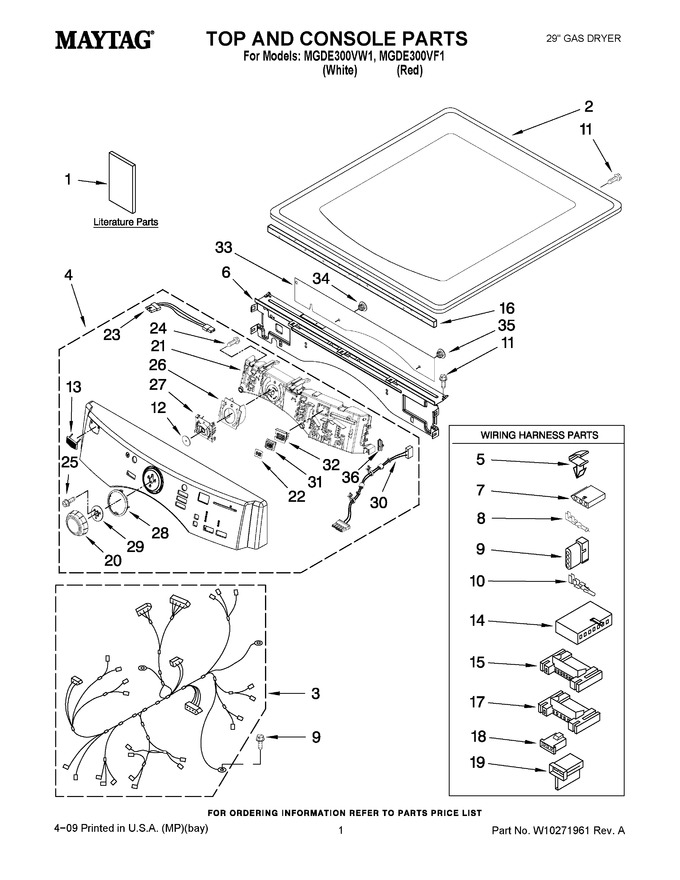

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10239302		Use & Care Guide		Appelez-nous	-
1	W10255469		Installation Instructions		Appelez-nous	-
1	W10258377		Tech Sheet		Appelez-nous	-
2	3980634		Top		Appelez-nous	-
3	W10111062		Harness, Main		Appelez-nous	-
4	W10246749		Red Metalic		Appelez-nous	-
4	W10246748		Console Assembly (white)		Appelez-nous	-
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
6	W10215656		Bracket, Console (includes No. 16)				$ 72.06
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	W11808444		Screw, 8-18 X 1/2   (Replaces: 98139)		Appelez-nous	-
12	8572039		Seal, User Interface		Appelez-nous	-
13	W10732500		Medallion   (Replaces: W10177245)				$ 43.27
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector, Motor			Immediately	$ 51.86
16	W10112267		Foam-seal Control Bracket				$ 92.89
17	2203186		Connector, 5-circuit				$ 12.55
18	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 6.95
19	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 5.73
20	W10164576		Knob				$ 56.77
21	W10246786		Techbox Assembly		Appelez-nous	-
22	W10171504		Foil-display				$ 13.42
23	W10185548		Harness, User-interface				$ 104.00
24	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
25	W11230114		Screw   (Replaces: 8540513)				$ 13.28
26	W10170295		Frame-light Guide		Appelez-nous	-
27	W10170293		Guide, Light Cylcle Internal				$ 89.82
28	W10164567		Cycle, Light Guide				$ 68.85
29	W10172298		Bushing, Knob				$ 13.40
30	W10242907		Power Cable User Interface				$ 162.24
31	W10164578		Guide, Light (3-way Digital)				$ 15.96
32	W10171502		Frame-light (guide Display)				$ 16.12
33	W10215674		Shield, Console Bracket				$ 33.47
34	W10216201		Plug-hole,1/4``(2)		Appelez-nous	-
35	W10216202		Plug-hole,5/16``(1)		Appelez-nous	-
36	W10214555		Plug, Connector				$ 6.94
