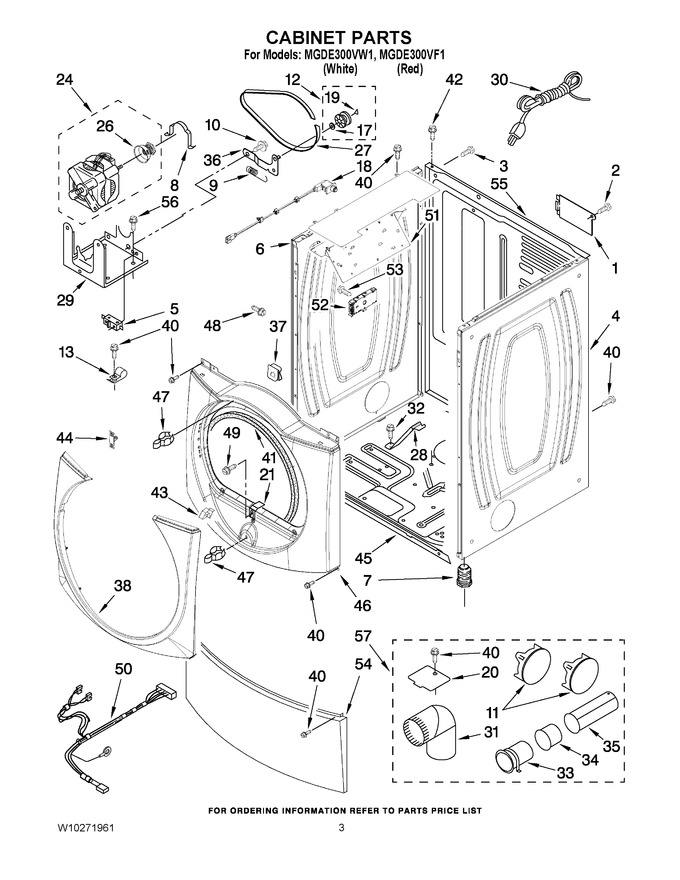

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.82 | ||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 8533974) |
|
$ 7.76 | |||||
| 4 | W10193957 | Panel, Side (r.h.) (magna Red Gloss) |
|
$ 75.88 | |||||
| 4 | W11233548 | Panel, Side (r.h.) (white) (Replaces: W10192446) |
|
$ 248.89 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 34.34 | ||||
| 6 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10192435) |
|
$ 248.89 | |||||
| 6 | W10193954 | Panel, Side (l.h.) (magna Red Gloss) |
|
- | |||||
| 7 | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 7 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 8 | WPW10121316 | Clamp, Motor (2) (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 9 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 10 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 11 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 11 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10151499) |
|
$ 71.98 | |||||
| 12 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 13 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 17 | WPW10121334 | Washer, Flat Plastic (Replaces: W10121334) |
|
Immediately | $ 7.19 | ||||
| 18 | W10128087 | Assembly, Door Switch |
|
$ 90.98 | |||||
| 19 | WPW10512946 | Tri- Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 20 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 8.96 | |||||
| 21 | 8529053 | Ramp, Door |
|
$ 51.37 | |||||
| 24 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 26 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.16 | ||||
| 27 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 100.30 | ||||
| 28 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 29 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 87.83 | ||||
| 30 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 97.05 | |||||
| 31 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 26.82 | |||||
| 32 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 33 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 91.38 | |||||
| 34 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 78.95 | |||||
| 35 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 88.80 | |||||
| 36 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 37 | 62825 | Clip, S-type (3) |
|
$ 8.11 | |||||
| 38 | W10221448 | Trim-ring Assembly (includes:item 48) (metalic Red) |
|
- | |||||
| 38 | W10221445 | Trim-ring Assembly (includes:item 48) (white) |
|
$ 118.13 | |||||
| 40 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 41 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 42 | W11808444 | Screw, 10-16 X 1/2 (Replaces: 98139) |
|
- | |||||
| 43 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 21.11 | |||||
| 44 | WPW10129065 | Trim-clip Metal (Replaces: W10129065) |
|
Immediately | $ 11.66 | ||||
| 45 | W10273475 | Base, Cabinet |
|
- | |||||
| 46 | W10153275 | Front Panel (includes Illus. 44) (white) |
|
- | |||||
| 46 | W10193967 | Front Panel (includes Illus. 44) (magna Red) |
|
- | |||||
| 47 | 279570 | Strike, Door (2) (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 48 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 49 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 50 | W10242903 | Harness, Digital Interface |
|
- | |||||
| 51 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 171.13 | |||||
| 52 | W10174745 | Control Board |
|
$ 307.22 | |||||
| 53 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 54 | W10246269 | Toe, Panel (white) |
|
$ 89.75 | |||||
| 54 | W10246286 | Toe, Panel (red) |
|
- | |||||
| 55 | W10244141 | Panel, Rear |
|
- | |||||
| 56 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 57 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10186596) |
|
Immediately | $ 76.65 | ||||
| 57 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
