01 - Top And Console Parts


02 - Cabinet Parts

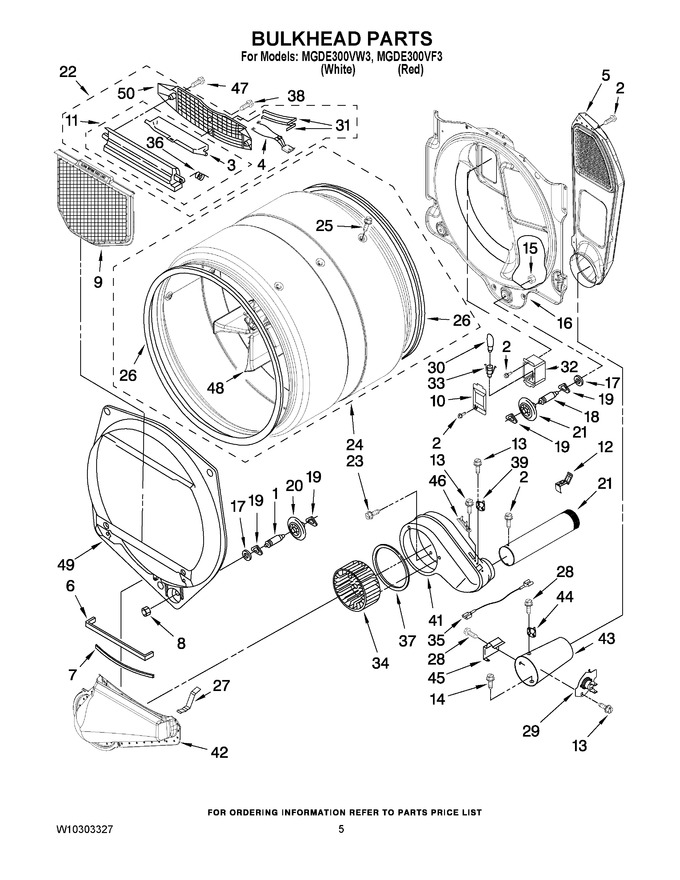

03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 62.21
2	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
3	W11222846		Door, Lint Screen   (Replaces: W10153413)			Immediately	$ 203.72
4	WP3406653		Harness, Sensor   (Replaces: 3406653)			Immediately	$ 151.96
5	W11168650		Air Duct Assembly   (Replaces: 3394346)				$ 97.66
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	W11812294		Nut,3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 12.16
9	W10120998		Lint, Screen   (Replaces: W10049370)				$ 67.16
10	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
11	W11219327		Outlet Housing Assembly (includes Item 6)   (Replaces: W10153423)				$ 90.54
12	W11684573		Clip, Exhaust Pipe   (Replaces: 8572105)				$ 7.78
13	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
14	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
15	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 8.49
16	WPW10080170		Bulkhead, Rear   (Replaces: W10080170)				$ 339.45
17	W11236646		Washer-support   (Replaces: 3387459)			Immediately	$ 14.03
18	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 58.48
19	WPW10512946		Ring Tri   (Replaces: 690997)			Immediately	$ 8.80
20	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 28.50
21	279936		Exhaust Pipe   (Replaces: 8563745)				$ 146.84
22	W10253353		Outlet Grill Housing Assembly- Complete (includes Item 6)		Appelez-nous	-
23	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 7.82
24	W10545924		Complete Drum Assembly   (Replaces: W10181466)				$ 435.06
25	W10853898		Screw, 11-16 X 3/4   (Replaces: W10219342)			Immediately	$ 7.75
26	280114		Seal, Drum   (Replaces: W10166807)			Immediately	$ 70.82
27	WP8066208		Clip Spring   (Replaces: 8066208)				$ 8.17
28	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
29	WP8573713		Thermal Cut-off   (Replaces: 8573713)			Immediately	$ 72.51
30	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 13.66
31	WP3387223		Electrode (sensor)   (Replaces: 3387223)			Immediately	$ 6.17
32	8578825		Bracket,drum Light				$ 20.88
33	W11222979		Socket Assembly   (Replaces: W10214261)			Immediately	$ 113.13
34	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
35	3401710		Jumper-tco Hi-limit		Appelez-nous	-
36	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
37	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
38	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
39	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
41	W10888146		Housing, Blower   (Replaces: 8544362)				$ 101.70
42	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 207.12
43	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 176.47
44	WP3391912		Thermostat Hi Limit   (Replaces: 3391912)			Immediately	$ 71.56
45	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
46	WP3392519		Thermal Fuse (91° C)   (Replaces: 3392519)			Immediately	$ 24.95
47	WP3387230		Screw, 10-16 X 1   (Replaces: 3387230)			Immediately	$ 8.54
48	W11782150		Baffle, Drum   (Replaces: 697693)			Immediately	$ 91.02
49	W10252304		Bulkhead, Front				$ 187.98
50	W11086603		Grille, Outlet   (Replaces: W10153412)			Immediately	$ 35.14
