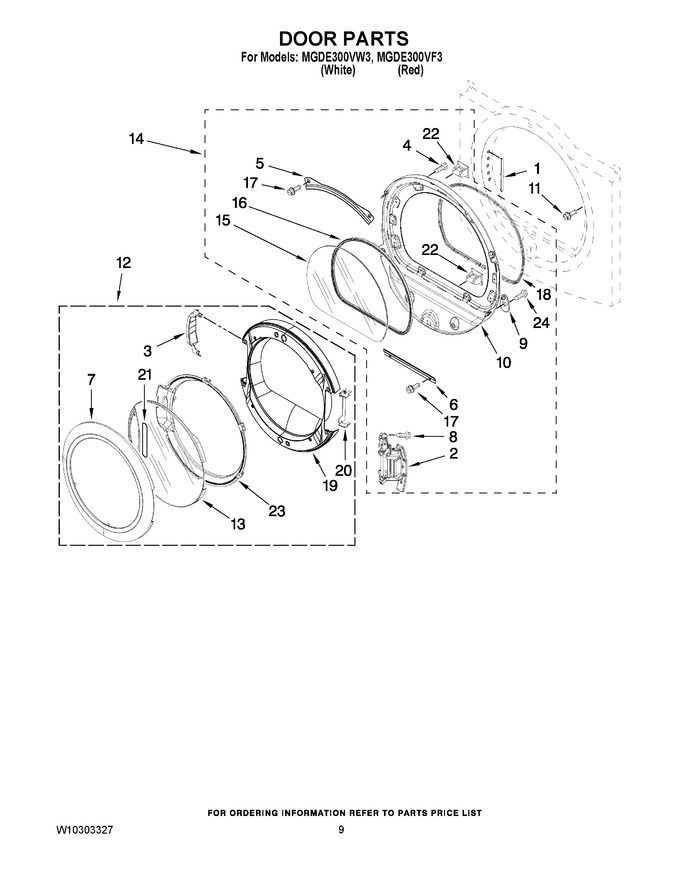

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10085210		Label, Hinge Hole (white)				$ 80.98
1	WPW10085230		Label, Hinge Hole (silver)   (Replaces: W10085230)				$ 21.86
2	WPW10310366		Door Hinge Assembly   (Replaces: W10139920)			Immediately	$ 246.11
3	W10180119		Cover, Door Hinge				$ 35.43
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.19
5	8519356		Retainer-window Upper		Appelez-nous	-
6	W10822054		Retainer-window Lower   (Replaces: 8519354)			Immediately	$ 17.15
7	W10193522		Handle Ring				$ 196.17
8	WPW10159996		Screw, 10-24 X 5/16   (Replaces: W10159996)				$ 7.68
9	W10048910		Screw-plug		Appelez-nous	-
10	8578229		Door Assembly (inner) (includes Illus. 22)				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.67
12	W10193530		Door, Outer				$ 228.00
13	W10180117		Door Mask Assembly				$ 92.85
14	8577819		Inner Door Assembly		Appelez-nous	-
15	8566254		Window				$ 127.75
16	8579662		Seal-window				$ 106.25
17	WP3373329		Screw, 10-16 X 3/64   (Replaces: 3393258)				$ 7.68
18	WPW10139457		Seal-door   (Replaces: W10139457)				$ 127.89
19	W10180118		Door-intermediate				$ 214.39
20	W10180120		Shield, Door				$ 50.86
21	W10153281		Pad,foam-frame		Appelez-nous	-
22	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
23	W10171571		Screen, Door				$ 142.54
24	3400224		Screw, 1/4-20 X.50				$ 5.27
