Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2301168SB Refrigerator Door (includes 7) (stainless Steel) Appelez-nous -
3 2301486 Door, Compartment Appelez-nous -
4 2193409K Beverage Holder Appelez-nous -
5 2165792K Butter Dish Special Order $ 9.72

7 2159083 Door Gasket, Magnetic (black)   (Replaces: 2221313) Special Order $ 251.49

8 2255516SK Handle (stainless Steel) Appelez-nous -
10 WPW10170540 Stud, Handle Mounting   (Replaces: 2219698) In-Stock Immediately $ 8.51

11 WP488163 Screw   (Replaces: 488208) Special Order $ 7.92

12 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

13 2159124 Gasket Appelez-nous -
14 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

15 2200082B Bracket, Door Stop (black) Special Order $ 42.44

16 WP2223434K Shelf Bin (4)   (Replaces: 2223434K) In-Stock Immediately $ 102.08

17 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

18 2212762 Nameplate (black) Appelez-nous -
19 8533976 Screw, Set Special Order $ 8.35


    View Diagram in Separate Window     Print Icon   Print Part List

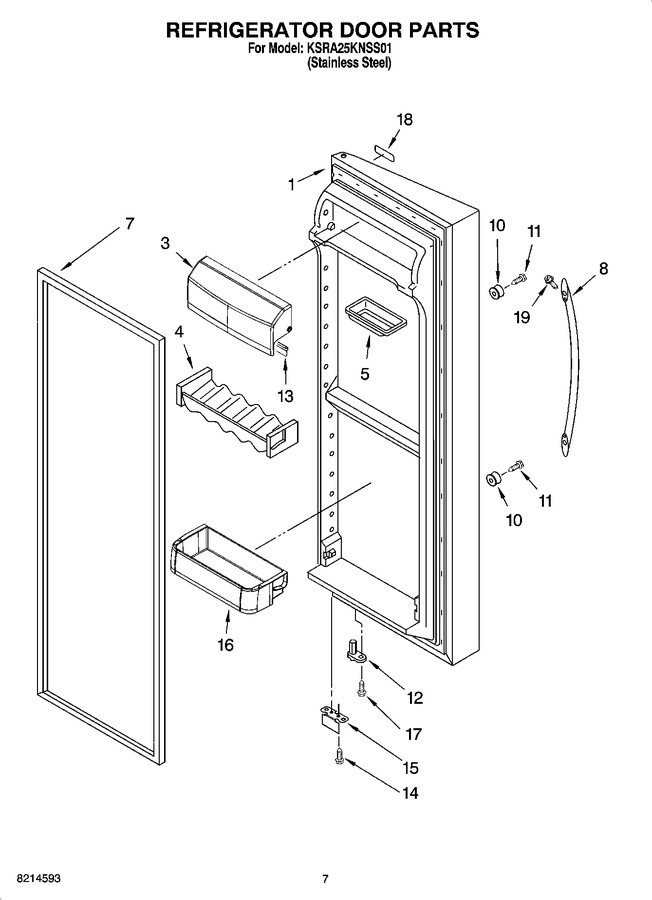

Diagram for KSRA25KNSS01
