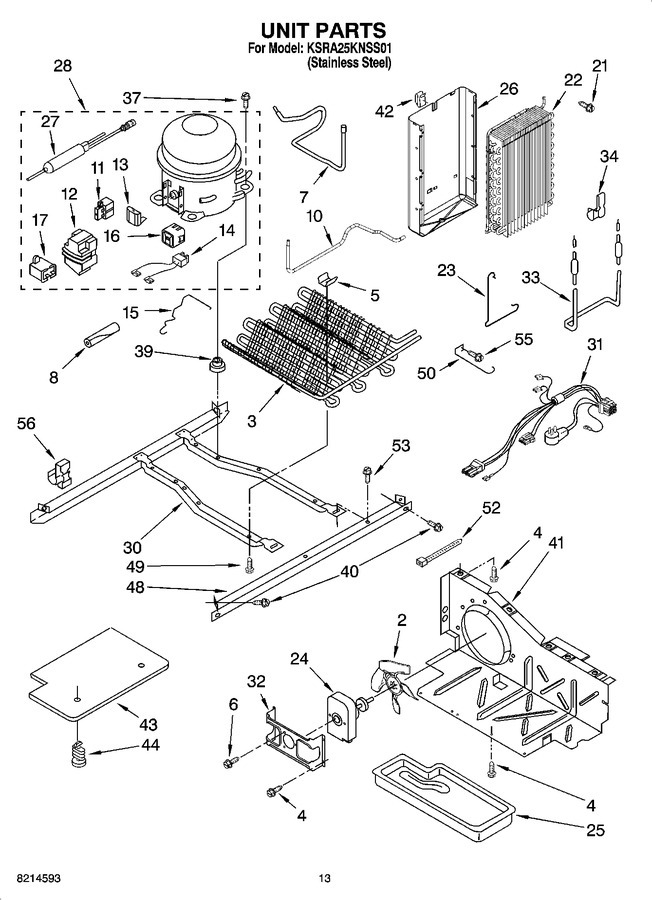

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: 2223953) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 10 | 2261599 | Tube, Condenser To Heat Loop |
|
$ 243.67 | |||||
| 11 | 2183454 | Relay (service Only) |
|
- | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 95.29 | |||||
| 13 | WP2154697 | Overload, (service Only) (Replaces: 2154697) |
|
$ 137.27 | |||||
| 14 | WP2172890 | Wire, Capacitor (service Only) (Replaces: 4387765) |
|
$ 8.51 | |||||
| 15 | 2223314 | Clip, Retaining |
|
- | |||||
| 16 | 2188830 | Start-device, Combination (start Relay And Overload) For Production Compressor Only |
|
- | |||||
| 17 | WPW10662129 | Capacitor ((production) (Replaces: 999532) |
|
Immediately | $ 58.86 | ||||
| 17 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | 2304289 | Heat Shield |
|
- | |||||
| 27 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 57.13 | ||||
| 27 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309994 | Compressor (includes Items 11, 12, 13, 14, 17, 27 & 39) (also Order 876765 Tube Kit) (Replaces: 2212192) |
|
Immediately | $ 643.55 | ||||
| 30 | 2304904 | Unit Mounting Frame (Replaces: 2157397) |
|
- | |||||
| 31 | WP2187778 | Unit, Harness (Replaces: 2187778) |
|
$ 93.20 | |||||
| 32 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 33 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 90.70 | ||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 39 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2206281 | Unit Cover, Bottom |
|
- | |||||
| 44 | 489396 | Clip |
|
$ 11.26 | |||||
| 48 | 2305374 | Unit Mounting Rail |
|
$ 84.67 | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 50 | 1110663 | Guard, Fan |
|
- | |||||
| 52 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 8.30 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 55 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 56 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 56 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 56 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 56 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 56 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 56 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 56 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 56 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 56 | N/A | Refrigerant Charge 5.0 Oz. (r-134a) |
|
- | |||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| W11729596 | Kims9 (Replaces: 2155468) |
|
Immediately | $ 150.98 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 8171420 | Cleaner, Stainless Steel |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 243.14 | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 27.77 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- |
