SELECT A DIAGRAM

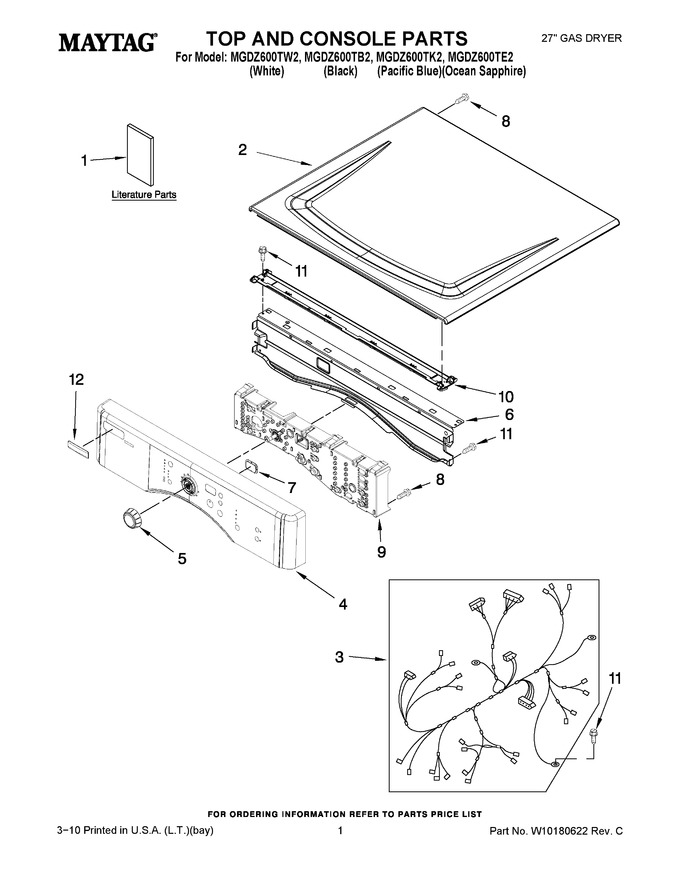

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10260034		Use & Care Guide		Appelez-nous	-
1	W10261613		Installation, Instruction		Appelez-nous	-
1	W10133923		Tech Sheet		Appelez-nous	-
2	W10140767		Top (pacific Blue)		Appelez-nous	-
2	W10174561		Top (ocean Sapphire)				$ 48.15
2	W10129703		Top (black)				$ 122.37
2	WPW10336080		Top (white)   (Replaces: 8563730)				$ 316.18
3	W10251443		Harness, Main				$ 290.06
4	W10119034		Panel, Console (includes Illus. 12.) (pacific Blue)		Appelez-nous	-
4	W10174674		Panel, Console (includes Illus. 12.) (ocean Sapphire)		Appelez-nous	-
4	W10117393		Panel, Console (includes Illus. 12.) (black)				$ 184.38
4	W10117389		Panel, Console (includes Illus. 12.) (white)		Appelez-nous	-
5	WPW10119050		Knob, Assembly   (Replaces: W10119050)				$ 53.67
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 180.73
7	W10117387		Lens, Display		Appelez-nous	-
8	3400238		Screw, 2-28 X 1/2				$ 12.03
9	W10117417		Assembly, User Interface				$ 275.17
10	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 70.44
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	W10203949		Badge Assembly				$ 68.61
