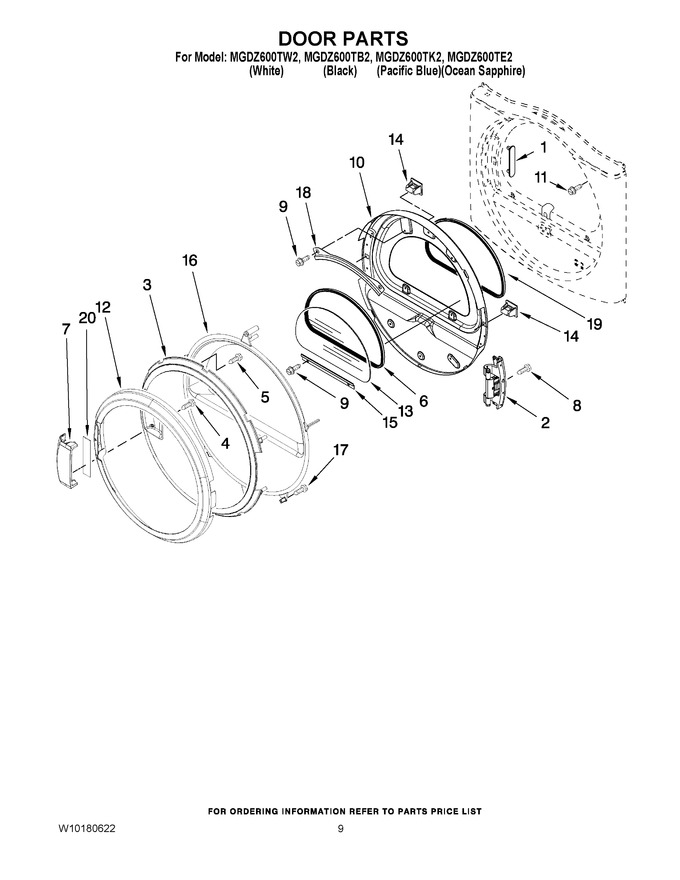

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label, Hinge Hole Cover   (Replaces: W10256915)				$ 78.16
2	WPW10304672		Door, Hinge Assembly   (Replaces: 8578887)			Immediately	$ 221.41
3	W10119053		Assembly, Door Intermediate				$ 201.38
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.19
5	3400618		Screw, 6-32 X 3/8				$ 64.70
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 26.88
7	W10112977		Handle, Door (includes Illus. 20.)   (Replaces: W10117478)				$ 93.84
8	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 7.68
9	WP3373329		Screw, 10-16 X 3/64   (Replaces: 3393258)				$ 7.68
10	WPW10164062		Door Assembly, Inner (includes Illus. 1,14 & 19)   (Replaces: W10259900)				$ 337.21
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.67
12	W10112917		Door, Outer Ring				$ 154.76
13	WPW10286878		Window   (Replaces: W10286878)				$ 261.68
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 17.15
16	WP8580059		Door, Intermediate   (Replaces: 8580059)				$ 102.38
17	WP8534022		Screw   (Replaces: 8534022)				$ 7.94
18	8519356		Retainer (upper)		Appelez-nous	-
19	N/P		Door Seal (not Serviceable)		Appelez-nous	-
20	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 7.91
