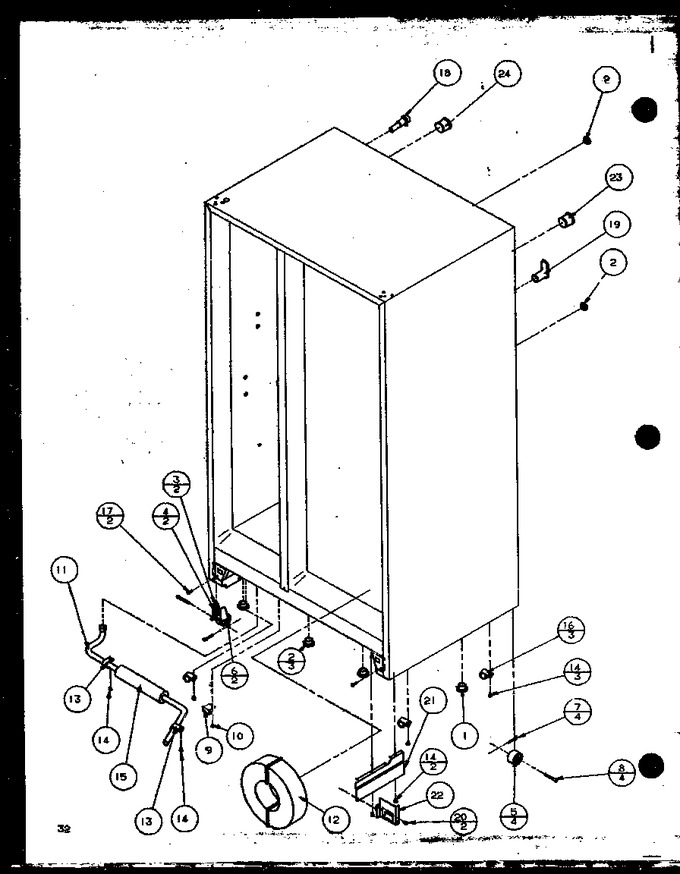

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice And Water Cavity


10 - Ice Bucket And Ice Maker


11 - Machine Compartment


12 - Ref Door


13 - Ref Door


14 - Ref Shelving And Drawers


15 - Ref/fz Controls And Cabinet Part


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 45.57
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	C8985801		Bracket, Retainer		Appelez-nous	-
10	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.95
11	D7748501		Drain Tube		Appelez-nous	-
12	D7787801		Tank, Coil Water		Appelez-nous	-
13	M0102303		Clamp		Appelez-nous	-
14	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 7.86
15	A0329814		Tubing Insulation By Inch		Appelez-nous	-
16	WP488366		Clamp Tube   (Replaces: M0102330)				$ 11.18
17	M0204339		Screw Bolt K		Appelez-nous	-
18	10277304		Assy, Fill Tube		Appelez-nous	-
19	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
20	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.82
21	10045601		Shield Elect, Box		Appelez-nous	-
22	10045701		End Plate Shield		Appelez-nous	-
23	10187501		Tunnel Wire		Appelez-nous	-
24	10187601		Tunnel Wire		Appelez-nous	-
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
