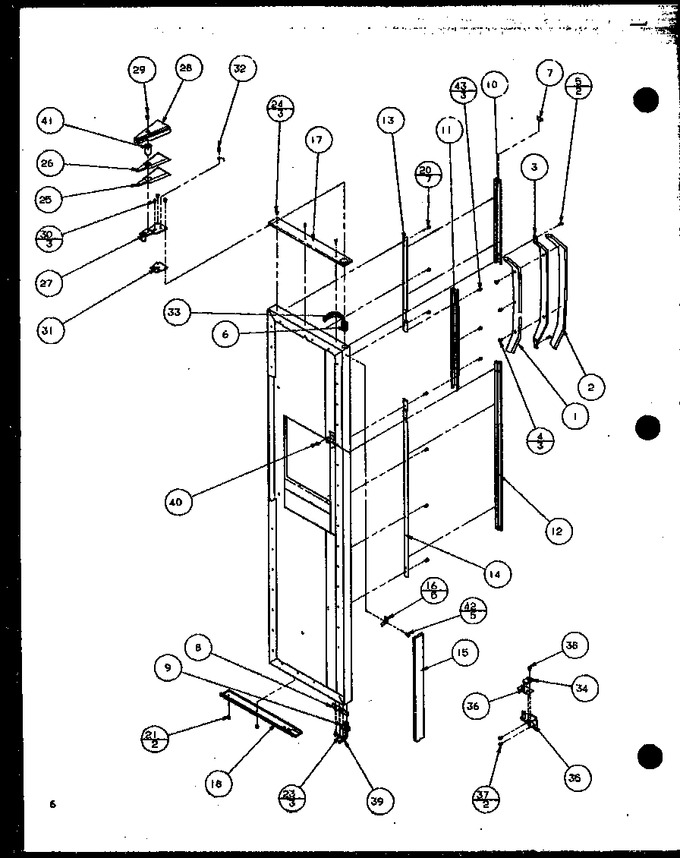

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7863001 | Inner Pad K |
|
- | |||||
| 2 | D7863101 | Outer Pad K |
|
- | |||||
| 3 | D7826603 | Handle |
|
- | |||||
| 4 | M0215116 | Screw |
|
- | |||||
| 5 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 7.93 | |||||
| 6 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 7.81 | |||||
| 7 | C8972303 | Shim |
|
- | |||||
| 8 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 9 | R0181181 | Kit,dr Closure (Replaces: D7751401) |
|
Immediately | $ 7.19 | ||||
| 10 | D7852102 | Trim Upper Frz Door (b) |
|
- | |||||
| 11 | D7854002 | Trim Center Frz (b) |
|
- | |||||
| 12 | D7792702 | Lower Trim Frz Door (b) |
|
- | |||||
| 13 | D7793002 | Retainer, Trim |
|
- | |||||
| 14 | D7793102 | Retainer, Trim |
|
- | |||||
| 15 | 10274201 | Trim Vertical |
|
- | |||||
| 16 | 10274101 | Clip, Trim |
|
- | |||||
| 17 | 10272001 | Trim Fz Door Top |
|
- | |||||
| 18 | 10271901 | Trim-fz Door Bot. |
|
- | |||||
| 20 | M0213815 | Screw |
|
- | |||||
| 21 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.88 | ||||
| 23 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 24 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.05 | ||||
| 25 | 10126501 | Insulation, Hinge Cover |
|
- | |||||
| 26 | 10126601 | Foil, Hinge Cover V/a |
|
- | |||||
| 27 | 10185101 | Top Hinge-e Ct |
|
- | |||||
| 28 | 10126401 | Hinge Cover - Chrome |
|
- | |||||
| 29 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.19 | ||||
| 30 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.38 | |||||
| 31 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 32 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
$ 14.02 | |||||
| 33 | 10164202 | Harness Fz Door |
|
- | |||||
| 34 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 7.19 | ||||
| 35 | 10163601 | Bottom Hinge, Frz |
|
- | |||||
| 36 | B8386703 | Kit,btm Hinge Shim |
|
- | |||||
| 36 | B8386702 | Kit,btm Hinge Shim |
|
- | |||||
| 36 | B8386701 | Kit,btm Hinge Shim |
|
- | |||||
| 37 | M0233844 | Screw, T F |
|
- | |||||
| 38 | WP489128 | Screw (Replaces: M0220417) |
|
$ 10.88 | |||||
| 39 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 12.43 | |||||
| 40 | WP489399 | Screw (Replaces: M0232903) |
|
$ 6.95 | |||||
| 41 | A3012532 | Tubing Plastic |
|
- | |||||
| 42 | M0213815 | Screw |
|
- | |||||
| 43 | M0216517 | Screw |
|
- |
