SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Freezer Liner


11 - Airflow


12 - Icemaker, Lit/optional

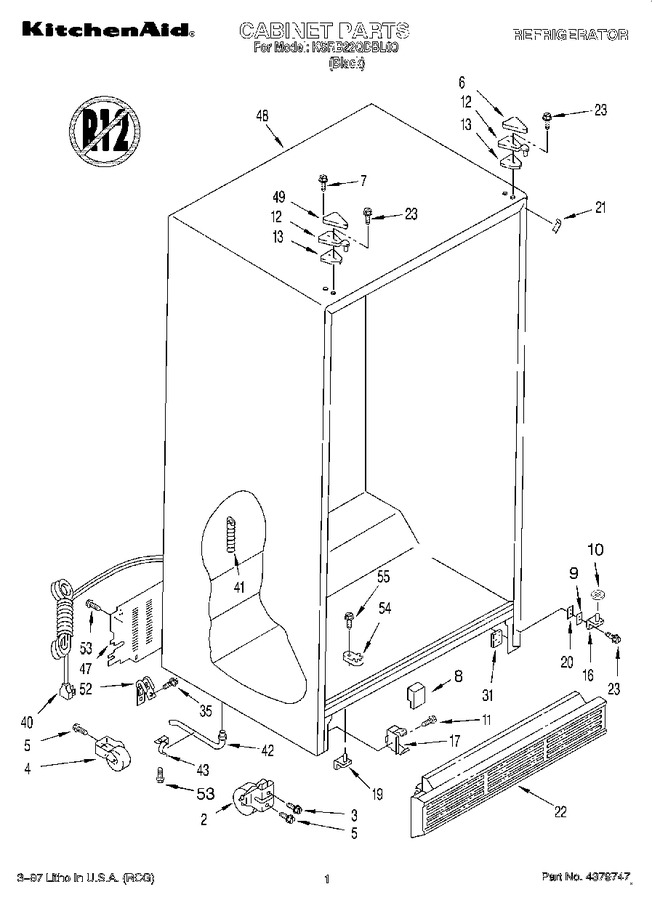

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 11.88
4	WPW10250570		Rear Roller (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	2155938		Hinge Cover				$ 15.55
7	489284		Screw		Appelez-nous	-
8	2176796		Insert, Air Baffle		Appelez-nous	-
9	836196		Shim		Appelez-nous	-
10	489328		Washer		Appelez-nous	-
11	WP489478		Screw   (Replaces: 489242)				$ 7.75
12	2155449		Hinge, Top (2)		Appelez-nous	-
13	1123518		Shim, Hinge Top		Appelez-nous	-
16	2155321		Hinge Bottom (r.h.)		Appelez-nous	-
17	WP2155013		Clip, Grille (2)   (Replaces: 2155013)			Immediately	$ 7.72
19	2155323		Hinge Bottom (l.h.)		Appelez-nous	-
20	1129868		Spacer, Hinge		Appelez-nous	-
21	1127272		Filler, Wrapper		Appelez-nous	-
22	2155476		Grille				$ 62.20
23	WP999367		Screw   (Replaces: 489367)				$ 7.86
31	2147310		Tap Plate (2)		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
40	937360		Cord, Service		Appelez-nous	-
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
47	WP2188756		Cover, Unit   (Replaces: 2171938)				$ 141.67
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	2171947		Hinge Cover		Appelez-nous	-
52	549193		Clamp-service Cord				$ 13.39
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
55	WP489483		Screw   (Replaces: 489420)				$ 10.87

    View Diagram in Separate Window       Print Part List
