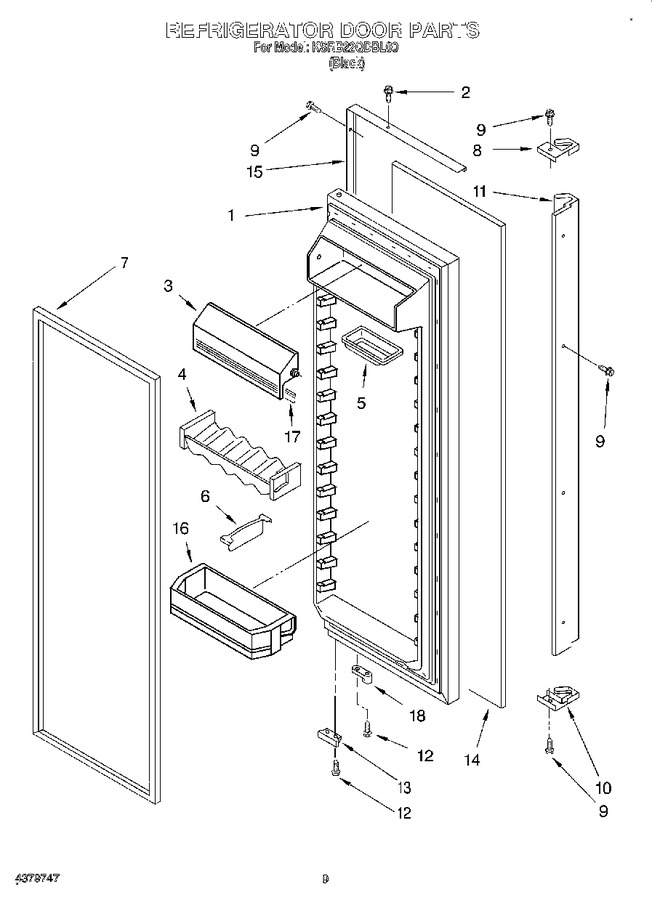

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2180037		Refrigerator Door (includes No.7)		Appelez-nous	-
2	489376		Screw		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2171283		Load Lock		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service)   (Replaces: 2177288)				$ 317.32
8	1125918		End Cap, Top		Appelez-nous	-
9	489112		Screw (2)		Appelez-nous	-
10	1125917		End Cap, Bottom		Appelez-nous	-
11	1125919		Handle		Appelez-nous	-
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2155334		Bracket, Door Stop		Appelez-nous	-
14	1126018		Black Glass		Appelez-nous	-
15	1117899		Trim, Door		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	2159124		Gasket		Appelez-nous	-
18	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
