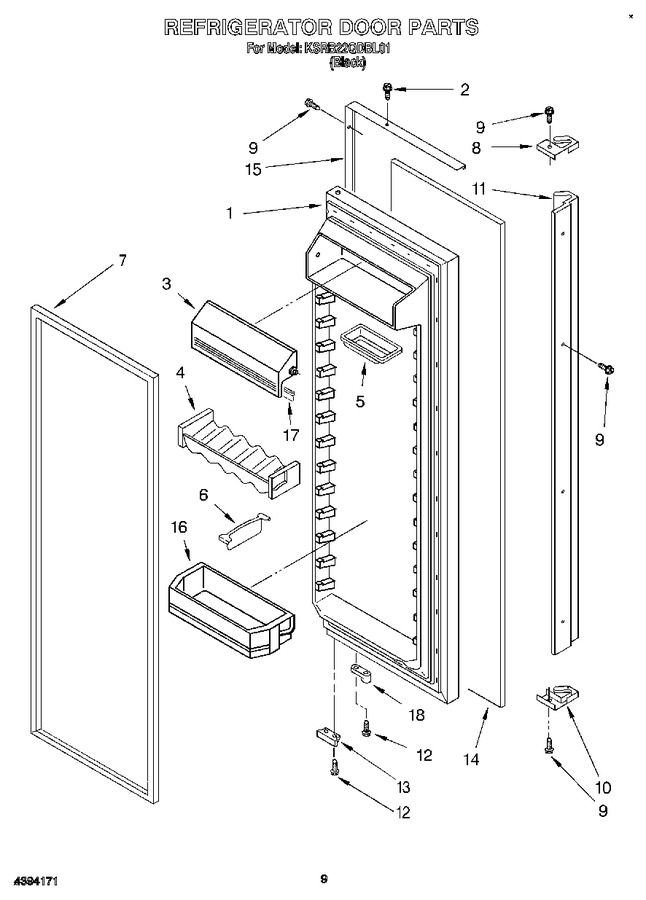

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2189708 | Refrigerator Door (includes No.7) |
|
- | |||||
| 2 | 489376 | Screw |
|
- | |||||
| 3 | 2171078 | Door, Compartment |
|
- | |||||
| 4 | 1125981 | Holder, Beverage |
|
- | |||||
| 5 | 1125936 | Butter, Tray |
|
- | |||||
| 6 | 2171283 | Load Lock |
|
- | |||||
| 7 | 2159081 | Door Gasket, Magnetic (service) |
|
$ 319.60 | |||||
| 8 | 1125918 | End Cap, Top |
|
- | |||||
| 9 | 489112 | Screw (2) |
|
- | |||||
| 10 | 1125917 | End Cap, Bottom |
|
- | |||||
| 11 | 1125919 | Handle |
|
- | |||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 13 | 2155334 | Bracket, Door Stop |
|
- | |||||
| 14 | 1126018 | Black Glass |
|
- | |||||
| 15 | 1117899 | Trim, Door |
|
- | |||||
| 16 | 2171063 | Shelf Bin (4) |
|
- | |||||
| 17 | 2159124 | Gasket |
|
- | |||||
| 18 | 4318165 | Door Closer, Upper Cam (Replaces: 2155312) |
|
Immediately | $ 27.36 |
