SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Freezer Liner


11 - Air Flow


12 - Icemaker, Lit/optional

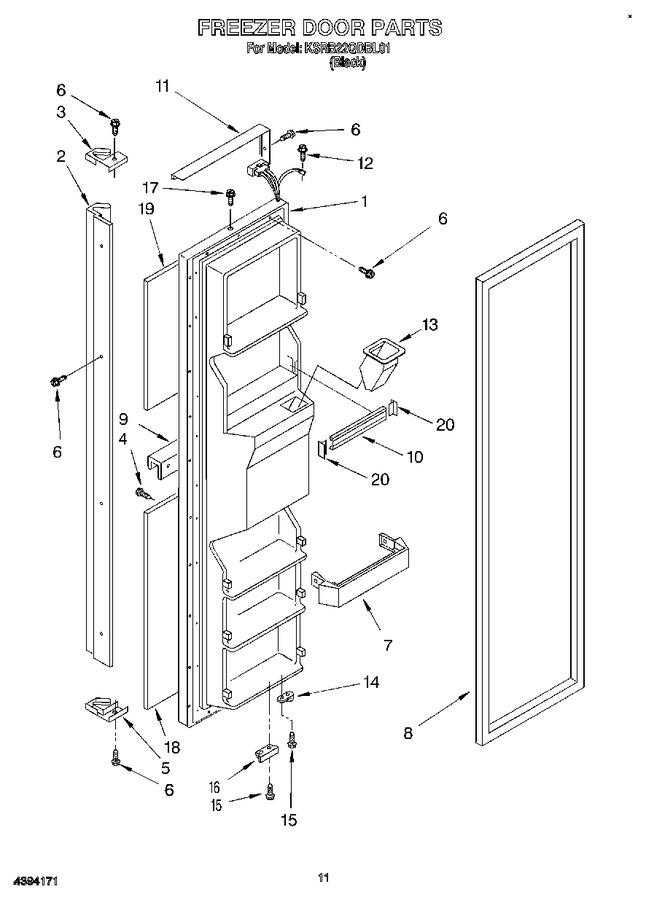

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189723		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	1125919		Handle		Appelez-nous	-
3	1125917		End Cap		Appelez-nous	-
4	489374		Screw		Appelez-nous	-
5	1125918		End Cap, Bottom		Appelez-nous	-
6	489112		Screw		Appelez-nous	-
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (service)				$ 310.39
9	1125979		Trim, Dispenser		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2171134)			Immediately	$ 23.11
11	1125921		Trim, Door		Appelez-nous	-
12	WP488234		Screw   (Replaces: 489422)				$ 6.74
13	2156146		Chute, Ice		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2155334		Bracket, Door Stop		Appelez-nous	-
17	489376		Screw		Appelez-nous	-
18	1126020		Black Glass, Lower		Appelez-nous	-
19	1126019		Black Glass, Upper		Appelez-nous	-
20	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.18
