SELECT A DIAGRAM

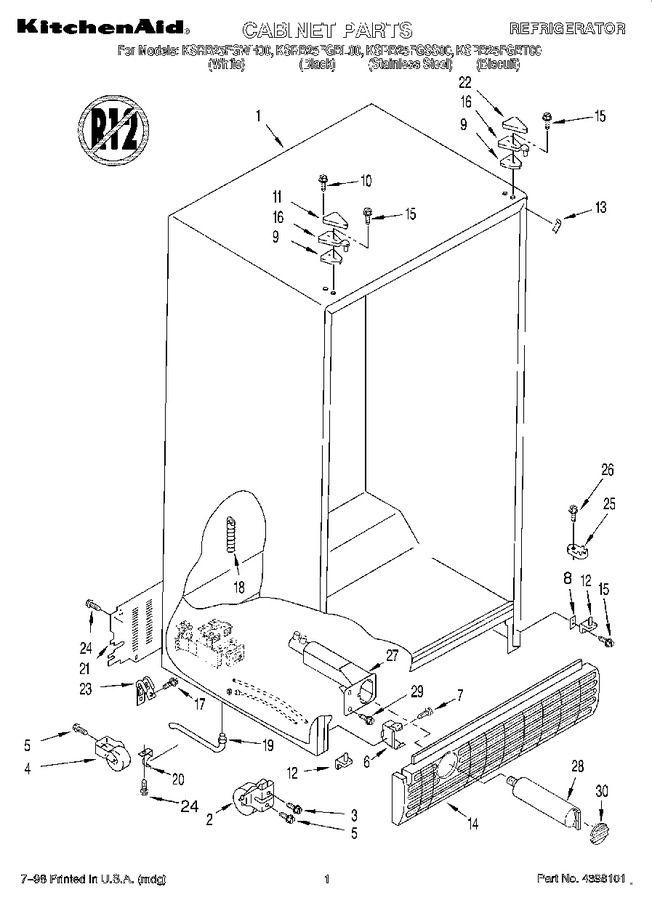

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 11.88
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
9	2196049		Shim, Hinge Top		Appelez-nous	-
10	489284		Screw		Appelez-nous	-
11	2171947W		Hinge Cover (white)		Appelez-nous	-
11	2171947T		Hinge Cover (biscuit)		Appelez-nous	-
11	2171947		Hinge Cover (black)		Appelez-nous	-
12	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 88.90
13	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
13	2196097		Filler, Wrapper (black)		Appelez-nous	-
13	2196094		Filler, Wrapper (white)		Appelez-nous	-
14	2198468T		Grille (biscuit)		Appelez-nous	-
14	W10803964		Grille (white)   (Replaces: 2198468W)				$ 127.70
14	W10803964		Grille (black)   (Replaces: 2198468B)				$ 127.70
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 104.44
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188755		Cover, Unit   (Replaces: 2176140)				$ 135.91
22	1119787		Hinge Cover (white)				$ 22.50
22	2186857		Hinge Cover (biscuit)		Appelez-nous	-
22	2155938		Hinge Cover (black)				$ 15.55
23	549193		Clamp-service Cord				$ 13.39
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
25	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
26	WP489483		Screw   (Replaces: 489483)				$ 10.87
27	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
28	EDR5RXD1B		Water Filter   (Replaces: 2200203)			Immediately	$ 49.99
29	WP489500		Screw   (Replaces: 489500)				$ 7.78
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186884T)				$ 11.88
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186884W)				$ 55.72
30	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186884B)			Immediately	$ 53.20

    View Diagram in Separate Window       Print Part List
