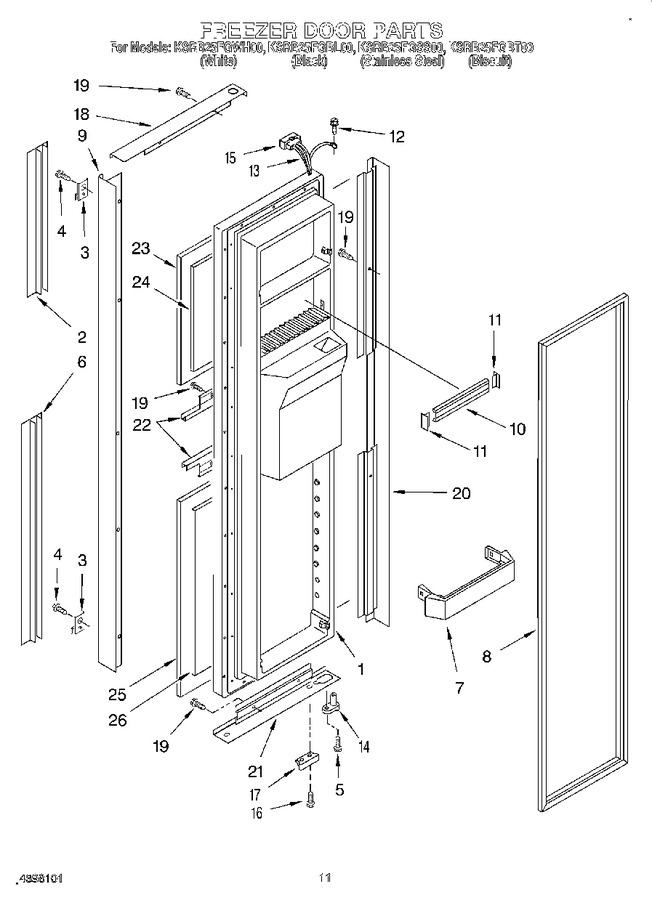

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2186663W | Freezer Door (includes No.8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2186663B | Freezer Door (includes No.8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2186663S | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | 2186663T | Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 2 | 2186775T | Cover, Screw (biscuit) |
|
- | |||||
| 2 | 2186775B | Cover, Screw (black) |
|
- | |||||
| 2 | 2186775W | Cover, Screw (white) |
|
- | |||||
| 2 | 2186789S | Cover, Screw (stainless Steel) |
|
- | |||||
| 3 | 2186700 | Clip, Handle Retainer |
|
- | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 6 | 2186773T | Cover, Screw (biscuit) |
|
- | |||||
| 6 | 2186773B | Cover, Screw (black) |
|
- | |||||
| 6 | 2186773W | Cover, Screw (white) |
|
- | |||||
| 6 | 2186787S | Cover, Screw (stainless Steel) |
|
- | |||||
| 7 | 2171070 | Shelf Bin (4) |
|
- | |||||
| 8 | 2159074 | Door Gasket, Magnetic (service) (mist Beige) |
|
$ 310.19 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (service) (black) |
|
$ 316.66 | |||||
| 9 | 2186694B | Handle (black) |
|
- | |||||
| 9 | 2186694T | Handle (biscuit) |
|
- | |||||
| 9 | 2186771S | Handle (stainless Steel) |
|
- | |||||
| 9 | 2186694W | Handle (white) |
|
- | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2195931) |
|
Immediately | $ 23.11 | ||||
| 11 | WP2156006 | End Cap (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 12 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 13 | 2180229 | Wire Harness |
|
$ 73.70 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 15 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 | |||||
| 16 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 17 | 2195950 | Bracket, Door Stop (black) |
|
$ 5.84 | |||||
| 17 | 2195952 | Bracket, Door Stop (chrome) |
|
- | |||||
| 18 | 2186691T | Trim, Door (top) (biscuit) |
|
- | |||||
| 18 | 2186691W | Trim, Door (top) (white) |
|
- | |||||
| 18 | 2186691B | Trim, Door (top) (black) |
|
- | |||||
| 18 | 2186768S | Trim, Door (top) (stainless Steel) |
|
- | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 20 | 2186765S | Trim, Door (hinge Side) (stainless Steel) |
|
- | |||||
| 20 | 2186688T | Trim, Door (hinge Side) (biscuit) |
|
- | |||||
| 20 | 2186688W | Trim, Door (hinge Side) (white) |
|
- | |||||
| 20 | 2186688B | Trim, Door (hinge Side) (black) |
|
- | |||||
| 21 | 2186685W | Trim, Door (bottom) (white) |
|
- | |||||
| 21 | 2186685T | Trim, Door (bottom) (biscuit) |
|
- | |||||
| 21 | 2186762S | Trim, Door (bottom) (stainless Steel) |
|
- | |||||
| 21 | 2186685B | Trim, Door (bottom) (black) |
|
- | |||||
| 22 | 2186702B | Trim, Door (dispenser, Top & Bottom) (black) |
|
- | |||||
| 22 | 2186702W | Trim, Door (dispenser, Top & Bottom) (white) |
|
- | |||||
| 22 | 2186702T | Trim, Door (dispenser, Top & Bottom) (biscuit) |
|
- | |||||
| 22 | 2186778S | Trim, Door (dispenser Top And Bottom) (stainless Steel) |
|
- | |||||
| 23 | 2186780S | Panel, Upper (stainless Steel) |
|
- | |||||
| 23 | 2186704W | Panel, Upper (white) |
|
- | |||||
| 23 | 2186704B | Panel, Upper (black) |
|
- | |||||
| 23 | 2186704T | Panel, Upper (biscuit) |
|
- | |||||
| 24 | 2186708 | Filler, Panel (upper) |
|
- | |||||
| 25 | 2186706B | Panel, Lower (black) |
|
- | |||||
| 25 | 2186782S | Panel, Lower (stainless Steel) |
|
- | |||||
| 25 | 2186706T | Panel, Lower (biscuit) |
|
- | |||||
| 25 | 2186706W | Panel, Lower (white) |
|
- | |||||
| 26 | 2186710 | Filler, Panel (lower) |
|
- |
