SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Freezer Interior


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

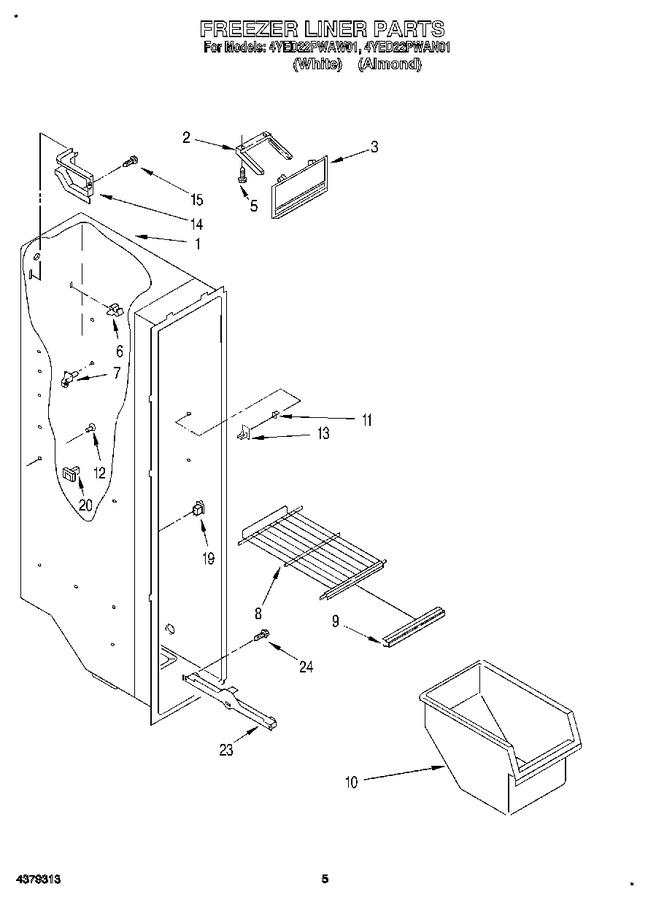

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2155371		Door, Ice Compartment		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489242)				$ 8.18
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	1115317		Support, Stud (2) L.s. Rear		Appelez-nous	-
8	1114609		Shelf (long)		Appelez-nous	-
8	1118165		Shelf (short)		Appelez-nous	-
9	1110782		Trim Shelf		Appelez-nous	-
10	2148194		Bin, Freezer		Appelez-nous	-
11	946355		Support Stud (8)		Appelez-nous	-
12	1110779		Grommet (8)		Appelez-nous	-
13	946356		Stud-front (3) R.s.		Appelez-nous	-
14	2155572		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	1106982		Stud-rear (3) R.s.		Appelez-nous	-
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 130.12
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
