4YED22PWAN01 | Leon's : Appliance Model Lookup

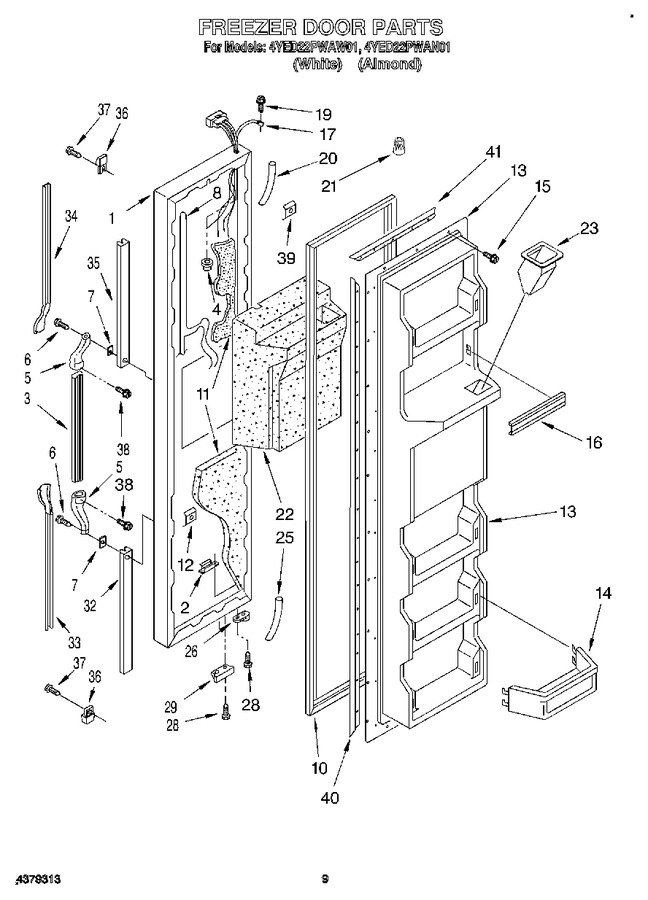

Diagram #	Part Number	Description	Availability	Ships	Price
1	1115238	Freezer, Door Panel (almond (also Order Item 11))	Appelez-nous	-
1	1115235	Freezer, Door Panel (white)	Appelez-nous	-
2	2155335	Tap, Plate	Appelez-nous	-
3	1118417	Handle, Center	Appelez-nous	-
4	939886	Seal, Hinge Pin	Appelez-nous	-
5	1119359	End Cap (2)	Appelez-nous	-
6	WPW10141645	Screw (Replaces: 489084)			$ 7.67
7	935075	Shim, End Cap (2)	Appelez-nous	-
8	2165376	Heater, Door	Appelez-nous	-
10	2188405A	Door Gasket, Magnetic (Replaces: 2148271)			$ 351.08
11	876029	Foam Insulation (required When Replacing Exterior Door Panel)	Appelez-nous	-
12	941242	Screw Anchor (2)	Appelez-nous	-
13	1125649	Panel, Interior Door	Appelez-nous	-
14	2148265	Trim, Door Shelf (4)	Appelez-nous	-
15	WP489069	Screw (Replaces: 489101)		Immediately	$ 7.86
16	2148252	Trim, Door Shelf	Appelez-nous	-
17	2167053	Harness, Door	Appelez-nous	-
19	WP488234	Screw (Replaces: 489422)			$ 6.74
20	1119059	Tube, Door Wiring	Appelez-nous	-
21	227991	Wire Connector	Appelez-nous	-
22	1115206	Insulation, Dispenser	Appelez-nous	-
23	987188	Chute, Ice	Appelez-nous	-
25	2147080	Tube, Door Wiring	Appelez-nous	-
26	4318165	Door Closer, Upper Cam (Replaces: 2155312)		Immediately	$ 27.36
28	WP999367	Screw (Replaces: 489367)			$ 7.86
29	2155334	Bracket, Door Stop	Appelez-nous	-
32	1119360	Retainer, Insert	Appelez-nous	-
33	1119363	Insert, Handle (almond)	Appelez-nous	-
33	1119361	Insert, Handle (white)	Appelez-nous	-
34	1119367	Insert, Handle (white)	Appelez-nous	-
34	1119369	Insert, Handle (almond)	Appelez-nous	-
35	1119366	Retainer, Insert	Appelez-nous	-
36	2156220	End Cap (2)	Appelez-nous	-
37	489075	Screw	Appelez-nous	-
38	489022	Screw	Appelez-nous	-
39	WP939101	Screw Anchor (2) (Replaces: 939101)			$ 7.50
40	1117766	Gasket Retainer, Side (2)			$ 36.55
41	1117767	Gasket Retainer, Top & Bottom	Appelez-nous	-
