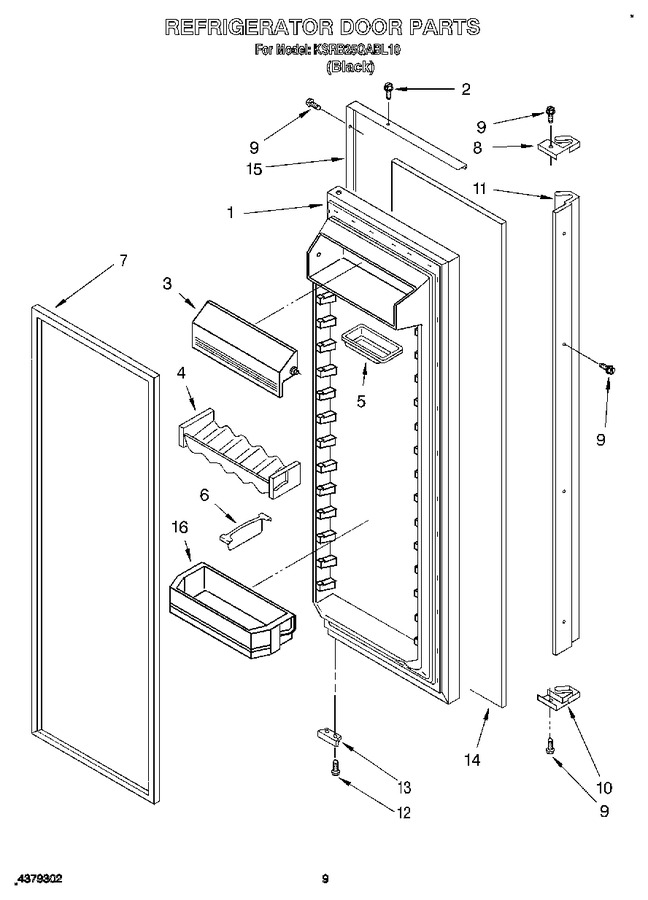

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2168833		Refrigerator Door (includes No.7)		Appelez-nous	-
2	489376		Screw		Appelez-nous	-
3	2159136		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	1117999		Load Lock		Appelez-nous	-
7	2159075		Door Gasket, Magnetic (service)   (Replaces: 2159079)			Immediately	$ 333.00
8	1125918		End Cap, Top		Appelez-nous	-
9	489112		Screw (2)		Appelez-nous	-
10	1125917		End Cap, Bottom		Appelez-nous	-
11	1125914		Handle		Appelez-nous	-
12	WP999367		Screw   (Replaces: 489367)				$ 8.56
13	2155334		Bracket, Door Stop		Appelez-nous	-
14	1126015		Black Glass		Appelez-nous	-
15	1117900		Trim, Door		Appelez-nous	-
16	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
16	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
16	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
16	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
16	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
16	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
16	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
16	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
16	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
16	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
16	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
16	833938		Kit, Terminal Connector				$ 8.47
16	515393		Transformer (115-230 Volt)		Appelez-nous	-
16	WPW10312300		Ice Container Asm   (Replaces: 2152710)				$ 388.09
16	WPW10312300		Ice Crusher Asm   (Replaces: 2149072)				$ 388.09
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
16	1125555		Shelf Bin (4)		Appelez-nous	-
16	350942		Primer White (13 Oz. Spray Can)				$ 94.14
16	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
16	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
16	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
16	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
16	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
16	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
16	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2168863		Energy Label		Appelez-nous	-
	LIT2169394		Service & Wiring Sheet		Appelez-nous	-
	LIT2155734		Use And Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
