SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door, Lit/optional


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Icemaker


11 - Air Flow


12 - Control

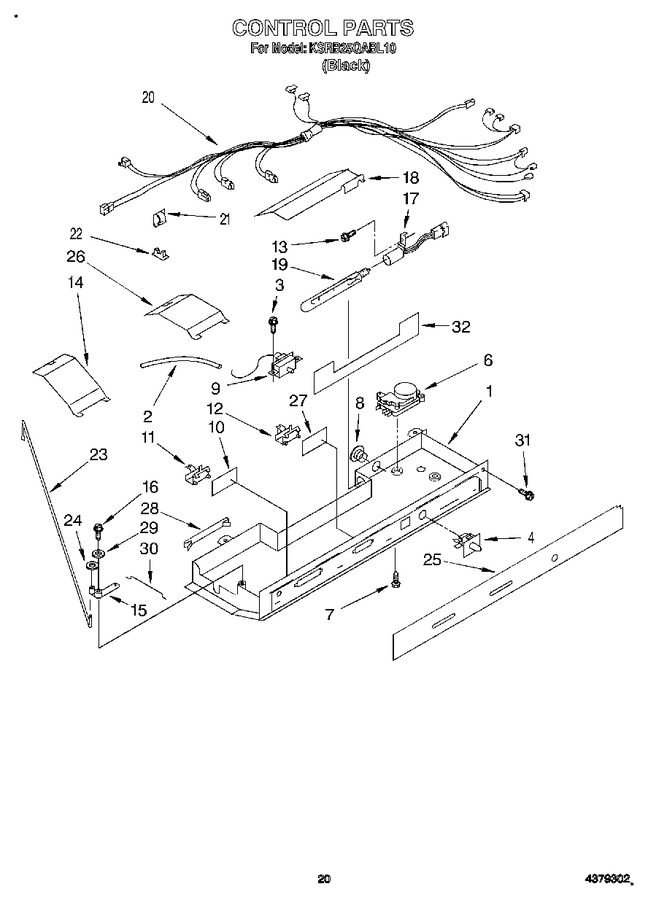

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2169149		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 8.35
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 1123923)			Immediately	$ 40.40
6	W10822278		Defrost Timer   (Replaces: 2162046)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	940014		Hole Plug				$ 18.33
9	WP2315562		Thermostat Assembly   (Replaces: 2161282)			Immediately	$ 106.18
10	1126028		Window		Appelez-nous	-
11	1125592		Slide, Air Control		Appelez-nous	-
12	1125591		Slide, Thermostat		Appelez-nous	-
13	WP489478		Screw   (Replaces: 489242)				$ 8.18
14	1118072		Light Bar		Appelez-nous	-
15	2161306		Arm, Pivot				$ 9.65
16	627068		Screw				$ 12.73
17	1110690		Light Socket		Appelez-nous	-
18	1118033		Heat Shield		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 548049)				$ 90.67
20	2155694		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
22	1115375		Clip, Wiring				$ 11.15
23	2161308		Connecting Rod				$ 180.72
24	489391		Fastener, Push-on				$ 7.52
25	2155695		Escutcheon, Control Box		Appelez-nous	-
26	1126089		Light Bar		Appelez-nous	-
27	1126027		Window		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	WP488488		Screw (4)   (Replaces: 489290)				$ 8.52
32	1127141		Heat Shield		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
